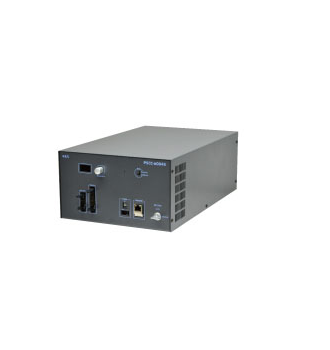

CCS LED光源 PSCC Series 控制器 (定電流)
Light controllerEquipped for Ethernet, EIA-485, and parallel communications external control all in a single unit.
-
Model
PSCC-30048(A)/PSCC-60048(A)
Lighting method
Continuous lighting
Drive method
Constant-current system
Intensity control method
Variable-current control
No. of channels
1 channel
Number of circuits
PSCC-30048(A): 7 circuits max. (Light intensity can be adjusted for each Light Unit circuit.)
Number of circuits
PSCC-60048(A): 15 circuits max. (Light intensity can be adjusted for each Light Unit circuit.)
Applicable Light Unit (rated)
PSCC-30048(A): 43 VDC or less and 293 W max. (36 W max. of which is for the fan)
PSCC-60048(A): 43 VDC or less and 602 W max. (50 W max. of which is for the fan)
Light intensity control
Manual and external intensity
Front manual/external switch (MODE)
External
Parallel communication
8-bit intensity value setting (B0 to B7) and write signal (WR)
External
EIA-485 communication
Command input via EIA-485 communication
External
Ethernet communication
Command input via TCP/IP or UDP/IP communication
External
External control mode can be selected by pushing the setting switch while turning on the power.
ON/OFF control
Parallel bit input
OFF signal (ON/OFF)
ON/OFF control
EIA-485 communication
OFF signal (ON/OFF), Command input via EIA-485 communication
ON/OFF control
Ethernet communication
OFF signal (ON/OFF), Command input via TCP/IP or UDP/IP communication
ON/OFF control
ON/OFF logic can be selected by pushing the setting switch while turning ON the power to the Control Unit.
25H or 99H: Normal logic (default) 25L or 99L: Reversed logic
EIA-485 communication
ID
Set via the front ID switch (00 to 03). Maximum of 4 connected units.
settings
Terminating resistance
Set via the front ID switch (terminating resistance is ON only when the ID is 00).
Error detection display
Burnt-out LED detection (open)
"E01" is displayed on the front-panel digital display.
Error detection display
Burnt-out LED detection (short circuit)
"E02" is displayed on the front-panel digital display.
Error detection display
Light Unit fan speed decrease/stop detection
"F01 to F07" is displayed on the front-panel digital display (PSCC-30048(A)).
"F01 to F15" is displayed on the front-panel digital display (PSCC-60048(A)).
Error detection display
Control Unit fan speed decrease/stop detection
"E03" is displayed on the front-panel digital display.
Error detection display
Communication error detection
"E04" is displayed on the front-panel digital display.
Error detection display
Connector disconnection detection
"E04" is displayed on the front-panel digital display.
Error detection display
Internal Control Unit error detection
"E05" is displayed on the front-panel digital display (PSCC-60048(A) only).
Error detection output
Parallel communication
Output at pins 19 and 20: Photocoupler insulation, open connector output, short circuit at alert (load current of 10 mA or less)
Error detection output
EIA-485 communication
Checked by using a status command through EIA-485 communication
Error detection output
Ethernet communication
Checked by using a status command through TCP/IP or UDP/IP
Input power supply
100 to 240 VAC (+10% - 15%), 50/60 Hz
Power consumption (typ.)
PSCC-30048(A): 360 VA, PSCC-60048(A): 750 VA
Operating temp. and humidity
Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation)
Storage temp. and humidity
Temperature: -20 to 60°C, Humidity: 20% to 85%RH (with no condensation)
Cooling method
Forced air cooling
CE marking
Safety standard: EN61010-1 compliant, EMC standard: EN61326-1 Class A compliant
Environmental regulations
RoHS compliant
Material, coating, surface processing
Steel plate, Thickness of cover: 1.0,
Thickness of chassis: 1.6 (PSCC-30048(A))/2.0 (PSCC-60048(A)), N3 leather tone finish
Weight
PSCC-30048(A): 3,100 g max., PSCC-60048(A): 7,000 g max.
Accessories
PSCC-30048(A): 3-prong AC cord with ground terminal (2 m) x 1, Instruction Guide x 1
PSCC-60048(A): 3-prong AC cord with ground terminal (2 m) x 1, Instruction Guide x 1, keys x 2
