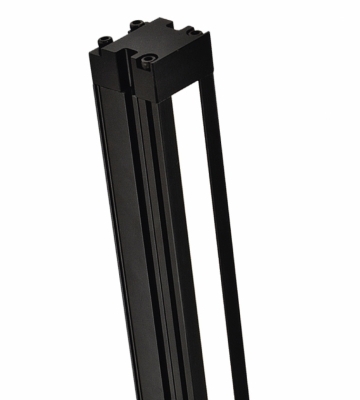

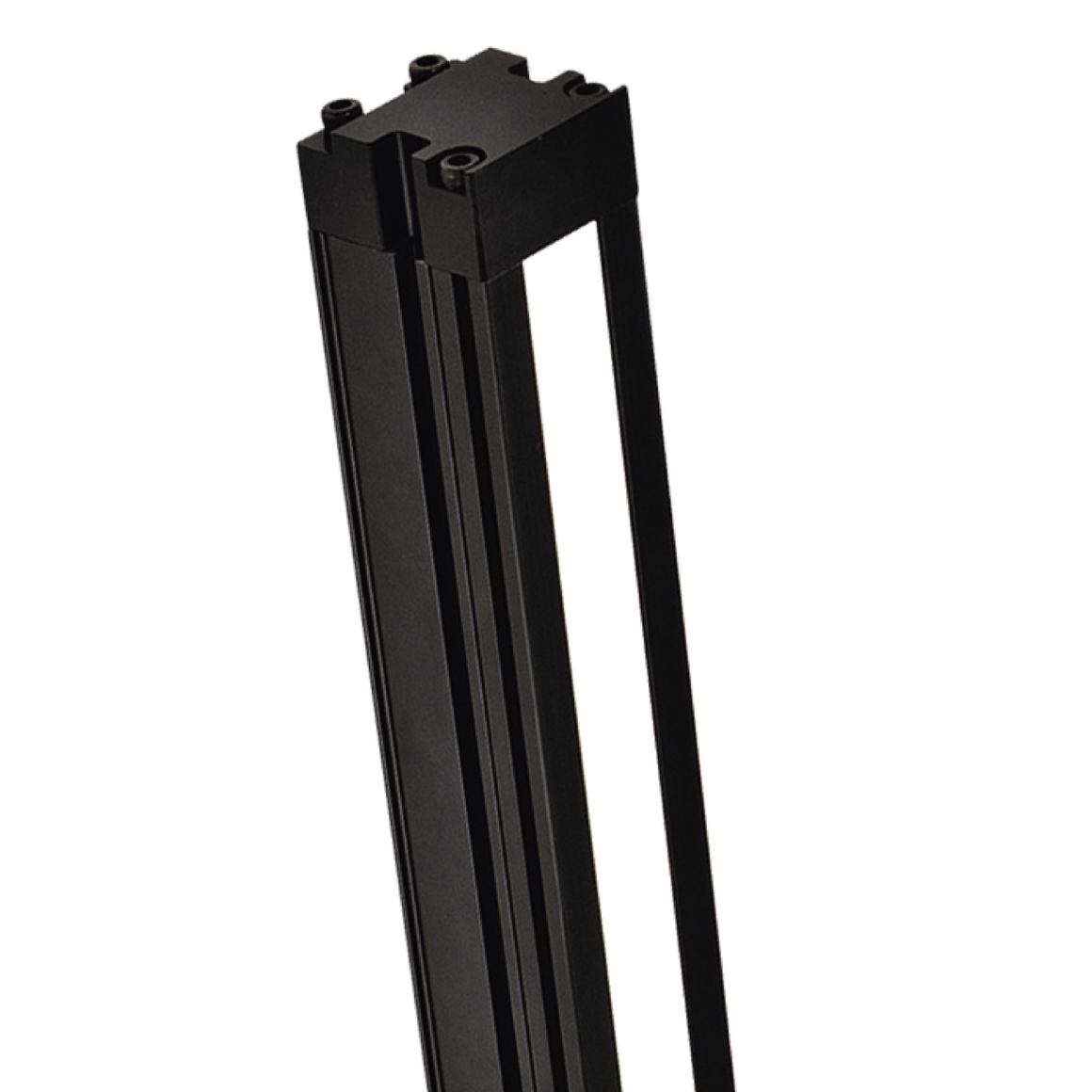

CCS LED光源 LNSD Series 線型

Light Unit

CCS easy-to-use, compact, and lightweight Line lights.
2 types (High luminance/uniformity) x 3 colors (White, red, and blue LEDs) x 30 sizes (100 mm to 3,000 mm) = 180 models.

加入追蹤

產品內容

型號 Model name	LED 顏色 LED color	輸入電壓/消耗瓦數 Power consumption	波長 Peak wavelength/ correlated color temperature	重量 Weight
LNSD-100RD	Red	24 V / 11 W	631 nm	200 g
LNSD-100SW	White		6,600 K
LNSD-100BL	Blue		470 nm
LNSD-200RD	Red	24 V / 21 W	631 nm	320 g
LNSD-200SW	White		6,600 K
LNSD-200BL	Blue		470 nm
LNSD-300RD	Red	24 V / 31 W	631 nm	460 g
LNSD-300SW	White		6,600 K
LNSD-300BL	Blue		470 nm
LNSD-400RD	Red	24 V / 41 W	631 nm	590 g
LNSD-400SW	White		6,600 K
LNSD-400BL	Blue		470 nm
LNSD-500RD	Red	24 V / 51 W	631 nm	720 g
LNSD-500SW	White		6,600 K
LNSD-500BL	Blue		470 nm
LNSD-600RD	Red	24 V / 61 W	631 nm	860 g
LNSD-600SW	White		6,600 K
LNSD-600BL	Blue		470 nm
LNSD-700RD	Red	24 V / 71 W	631 nm	990 g
LNSD-700SW	White		6,600 K
LNSD-700BL	Blue		470 nm
LNSD-800RD	Red	24 V / 81 W	631 nm	1120g
LNSD-800SW	White		6,600 K
LNSD-800BL	Blue		470 nm
LNSD-900RD	Red	24 V / 91 W	631 nm	1240g
LNSD-900SW	White		6,600 K
LNSD-900BL	Blue		470 nm
LNSD-1000RD	Red	24 V / 101 W	631 nm	1370 g
LNSD-100SW	White		6,600 K
LNSD-1000BL	Blue		470 nm
LNSD-1100RD	Red	24 V / 111 W	631 nm	1500 g
LNSD-1100SW	White		6,600 K
LNSD-1100BL	Blue		470 nm
LNSD-1200RD	Red	24 V / 121 W	631 nm	1640 g
LNSD-1200SW	White		6,600 K
LNSD-1200BL	Blue		470 nm
LNSD-1300RD	Red	24 V / 131 W	631 nm	1770 g
LNSD-1300SW	White		6,600 K
LNSD-1300BL	Blue		470 nm
LNSD-1400RD	Red	24 V / 141 W	631 nm	1910 g
LNSD-1400SW	White		6,600 K
LNSD-1400BL	Blue		470 nm
LNSD-1500RD	Red	24 V / 151 W	631 nm	2040 g
LNSD-1500SW	White		6,600 K
LNSD-1500BL	Blue		470 nm
LNSD-1600RD	Red	24 V / 161 W	631 nm	2170 g
LNSD-1600SW	White		6,600 K
LNSD-1600BL	Blue		470 nm
LNSD-1700RD	Red	24 V / 171 W	631 nm	2300 g
LNSD-1700SW	White		6,600 K
LNSD-1700BL	Blue		470 nm
LNSD-1800RD	Red	24 V / 181 W	631 nm	2440 g
LNSD-1800SW	White		6,600 K
LNSD-1800BL	Blue		470 nm
LNSD-1900RD	Red	24 V / 192 W	631 nm	2570 g
LNSD-1900SW	White		6,600 K
LNSD-1900BL	Blue		470 nm
LNSD-2000RD	Red	24 V / 202 W	631 nm	2700 g
LNSD-2000SW	White		6,600 K
LNSD-2000BL	Blue		470 nm
LNSD-2100RD	Red	24 V / 212 W	631 nm	2830 g
LNSD-2100SW	White		6,600 K
LNSD-2100BL	Blue		470 nm
LNSD-2200RD	Red	24 V / 222 W	631 nm	2960 g
LNSD-2200SW	White		6,600 K
LNSD-2200BL	Blue		470 nm
LNSD-2300RD	Red	24 V / 232 W	631 nm	3090 g
LNSD-2300SW	White		6,600 K
LNSD-2300BL	Blue		470 nm
LNSD-2400RD	Red	24 V / 242 W	631 nm	3220 g
LNSD-2400SW	White		6,600 K
LNSD-2400BL	Blue		470 nm
LNSD-2500RD	Red	24 V / 230 W	631 nm	3350 g
LNSD-2500SW	White		6,600 K
LNSD-2500BL	Blue		470 nm
LNSD-2600RD	Red	24 V / 239 W	631 nm	3480 g
LNSD-2600SW	White		6,600 K
LNSD-2600BL	Blue		470 nm
LNSD-2700RD	Red	24 V / 248 W	631 nm	3610 g
LNSD-2700SW	White		6,600 K
LNSD-2700BL	Blue		470 nm
LNSD-2800RD	Red	24 V / 257 W	631 nm	3740 g
LNSD-2800SW	White		6,600 K
LNSD-2800BL	Blue		470 nm
LNSD-2900RD	Red	24 V / 267 W	631 nm	3870 g
LNSD-2900SW	White		6,600 K
LNSD-2900BL	Blue		470 nm
LNSD-3000RD	Red	24 V / 276 W	631 nm	4000 g
LNSD-3000SW	White		6,600 K
LNSD-3000BL	Blue		470 nm
