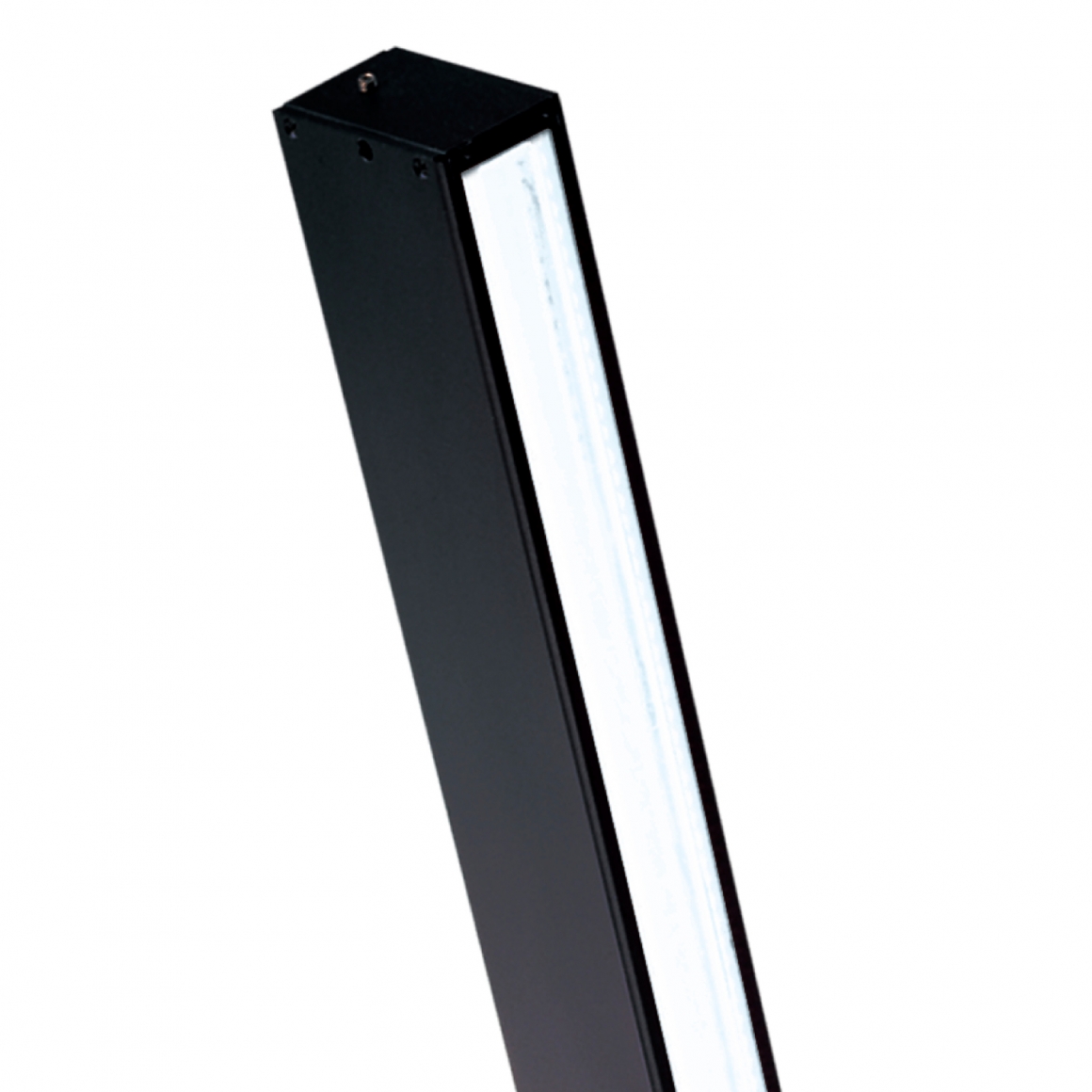

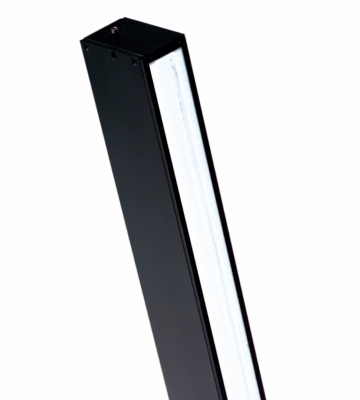

CCS LED光源 LN Series 線型

Light Unit

The width of the converged light can be adjusted by changing the end unit. Units with 60-mm or 20-mm light-emitting surface are available. The CCS LN-HK Series, which provides high power illumination with white power LEDs and unique heat-dissipating structure, is also available.

加入追蹤

產品內容

型號 Model name	LED 顏色 LED color	輸入電源/消耗瓦數 Power consumption	波長 Peak wavelength/ correlated color temperature	重量 Weight
LN-60RD2	Red	24 V / 2.1 W	630 nm	130 g
LN-60SW2	White	24 V / 1.0 W	5,500 K
LN-60BL2	Blue		470 nm
LN-60GR2	Green		525 nm
LN-200RD2	Red	24 V / 3.1 W	630 nm	500 g
LN-200SW2	White		5,500 K
LN-200BL2	Blue		470 nm
LN-200GR2	Green		525 nm
