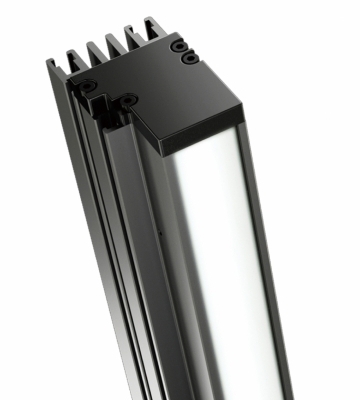

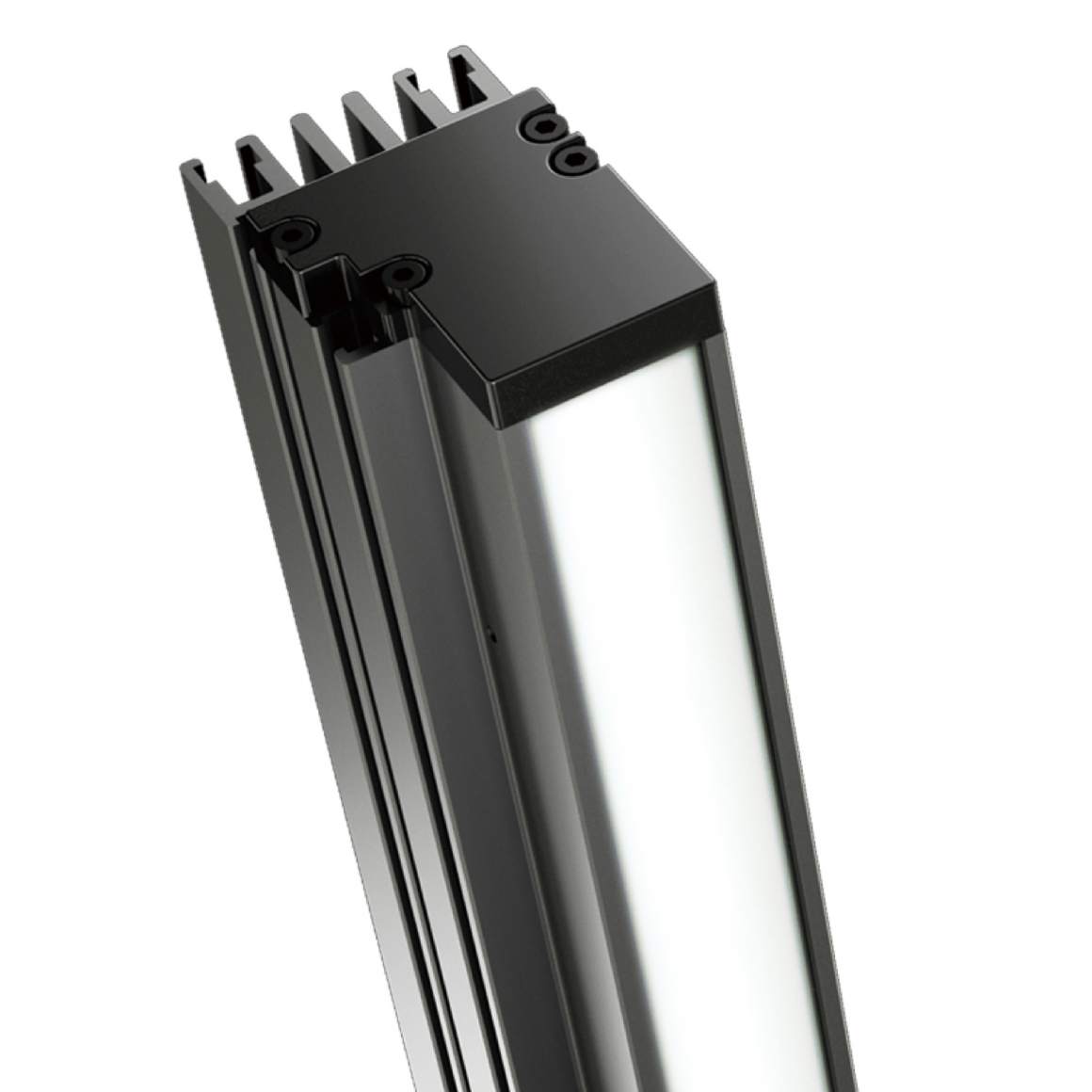

CCS LED光源 LNSP2 Series 線型

Light Unit

CCS high illuminance Light Units for Line Sensor.
Achieved an illuminance of 900,000 lx by using a natural air-cooling system.

產品內容

型號 Model name	Type	發光面長度 Emitting surface length	消耗瓦數 Power consumption (max.)	波長 Peak wavelength/ correlated color temperature	重量 Weight (max.)
LNSP2-100SW	Standard	100 mm	20 W	6,600K	400 g
LNSP2-200SW		200 mm	40 W		700 g
LNSP2-300SW		300 mm	60 W		1,000 g
LNSP2-400SW		400 mm	80 W		1,300 g
LNSP2-500SW		500 mm	100 W		1,600 g
LNSP2-600SW		600 mm	120 W		1,900 g
LNSP2-700SW		700 mm	140 W		2,200 g
LNSP2-800SW		800 mm	160 W		2,500 g
LNSP2-900SW		900 mm	180 W		2,800 g
LNSP2-1000SW		1,000 mm	200 W		3,100 g
LNSP2-100SW-NDF	NDF	100 mm	24 W		400 g
LNSP2-200SW-NDF		200 mm	48 W		700 g
LNSP2-300SW-NDF		300 mm	72 W		1,000 g
LNSP2-400SW-NDF		400 mm	96 W		1,300 g
LNSP2-500SW-NDF		500 mm	120 W		1,600 g
LNSP2-600SW-NDF		600 mm	144 W		1,900 g
LNSP2-700SW-NDF		700 mm	168 W		2,200 g
LNSP2-800SW-NDF		800 mm	192 W		2,500 g
LNSP2-900SW-NDF		900 mm	216 W		2,800 g
LNSP2-1000SW-NDF		1,000 mm	240 W		3,100 g
