CCS LED光源 LV Series
Light Unit

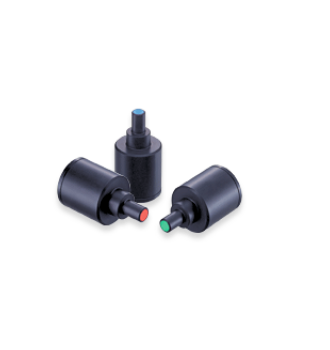

The CCS LV Spot Lights feature low power consumption. The product lineup includes the LED colors of red (RD), white (SW), blue (BL), and green (GR).
Spot Light with tip radius of Φ8 mm and emitting surface of Φ6 mm.
Can be used embedded into the coaxial illuminating section of a telecentric lens or macro lens.
Spot Light with tip radius of Φ8 mm and emitting surface of Φ6 mm.
Can be used embedded into the coaxial illuminating section of a telecentric lens or macro lens.
-
型號
Model nameLED 顏色
LED color輸入電壓/消耗瓦數
Power consumption波長
Peak wavelength/ correlated color temperature重量
WeightLV-27RD2
Red
24 V / 0.8 W
630 nm
40 g
LV-27SW2
White
24 V / 0.4 W
5,500 K
LV-27BL2
Blue
24 V / 0.4 W
470 nm
LV-27GR2
Green
24 V / 0.6 W
525 nm
