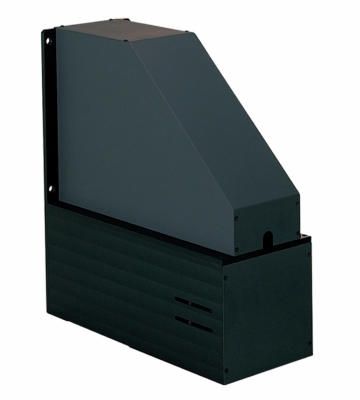

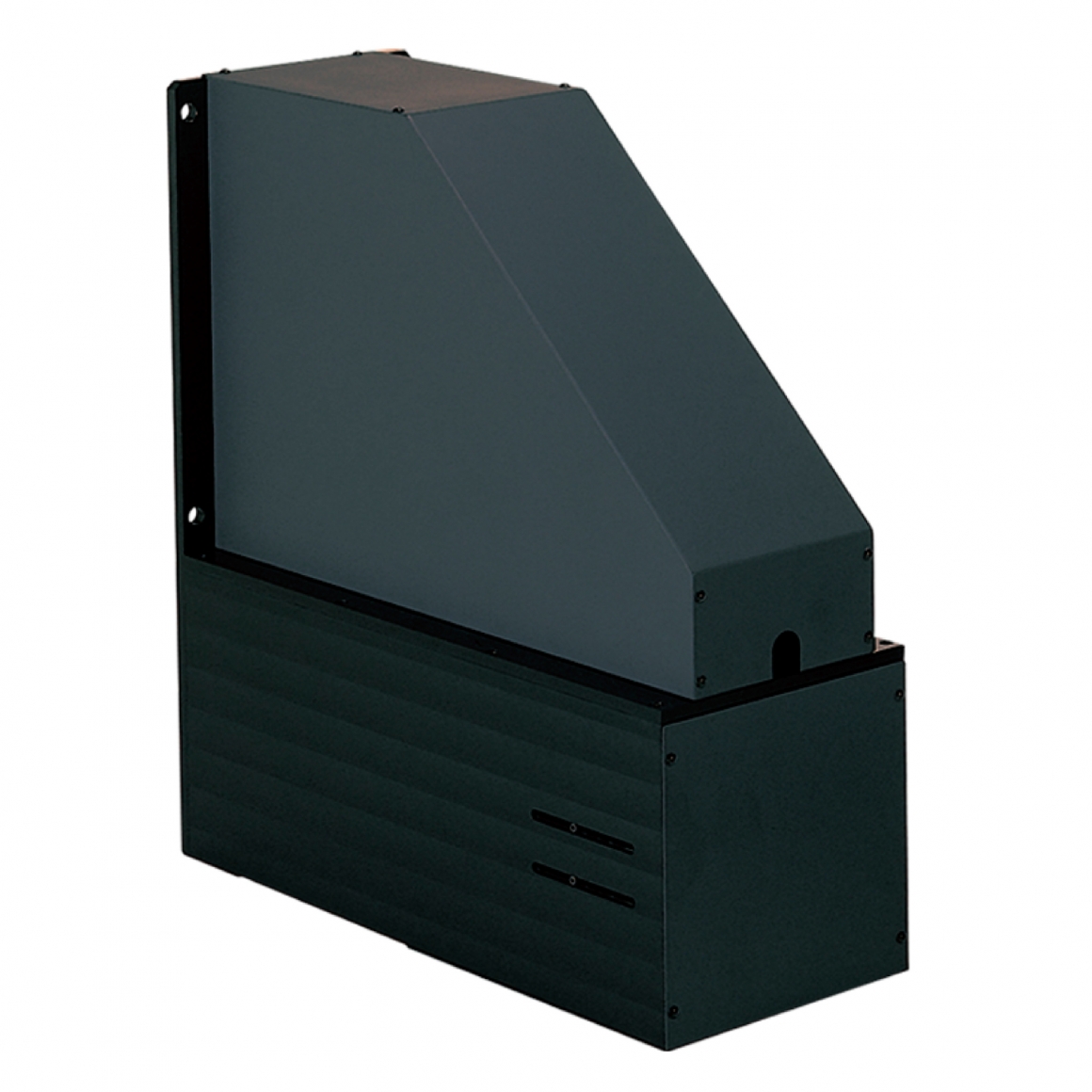

CCS LED光源 MSU Series 平行同軸

Light Unit

These CCS Coaxial Lights provide collimated lighting which is created through a special lens.
The product lineup includes five models with different fields of view and the LED colors of red (RD2), white (SW), blue (BL), and green (GR).

加入追蹤

產品內容

型號 Model	顏色 Color	波長 Peak wavelength/ Relative color temperature (typ.)	輸入電壓/消耗瓦數 Power Consumption (max.)	重量 Weight (max.)
MSU-10RD2	Red	630 nm	24 V / 0.8 W	275 g
MSU-10SW2	White	5,500 K	24 V / 0.4 W
MSU-10BL2	Blue	470 nm	24 V / 0.4 W
MSU-30RD2	Red	630 nm	24 V / 0.8 W	2000 g
MSU-30BL2	Blue	470 nm	24 V / 0.4 W	2000 g
MSU-30X20RD2	Red	630 nm	24 V / 0.8 W	540 g
MSU-30X20SW2	White	5,500 K	24 V / 0.5 W
MSU-30X2BL2	Blue	470 nm	24 V / 0.5 W
MSU-30X20GR2	Green	525nm	24 V / 0.5 W
MSU-100RD2	Red	630 nm	24 V / 0.8 W	9920 g
MSU-100SW2	White	5,500 K	24 V / 0.4 W	9920 g
MSU-130RD2	Red	630 nm	24 V / 0.8 W	12,700 g
MSU-130SW2-CL	White	5,500 K	24 V / 0.4 W 24 V / 4.6 W	13,000 g
