CCS LED光源 HLDR-IP Series 環型

Light Unit

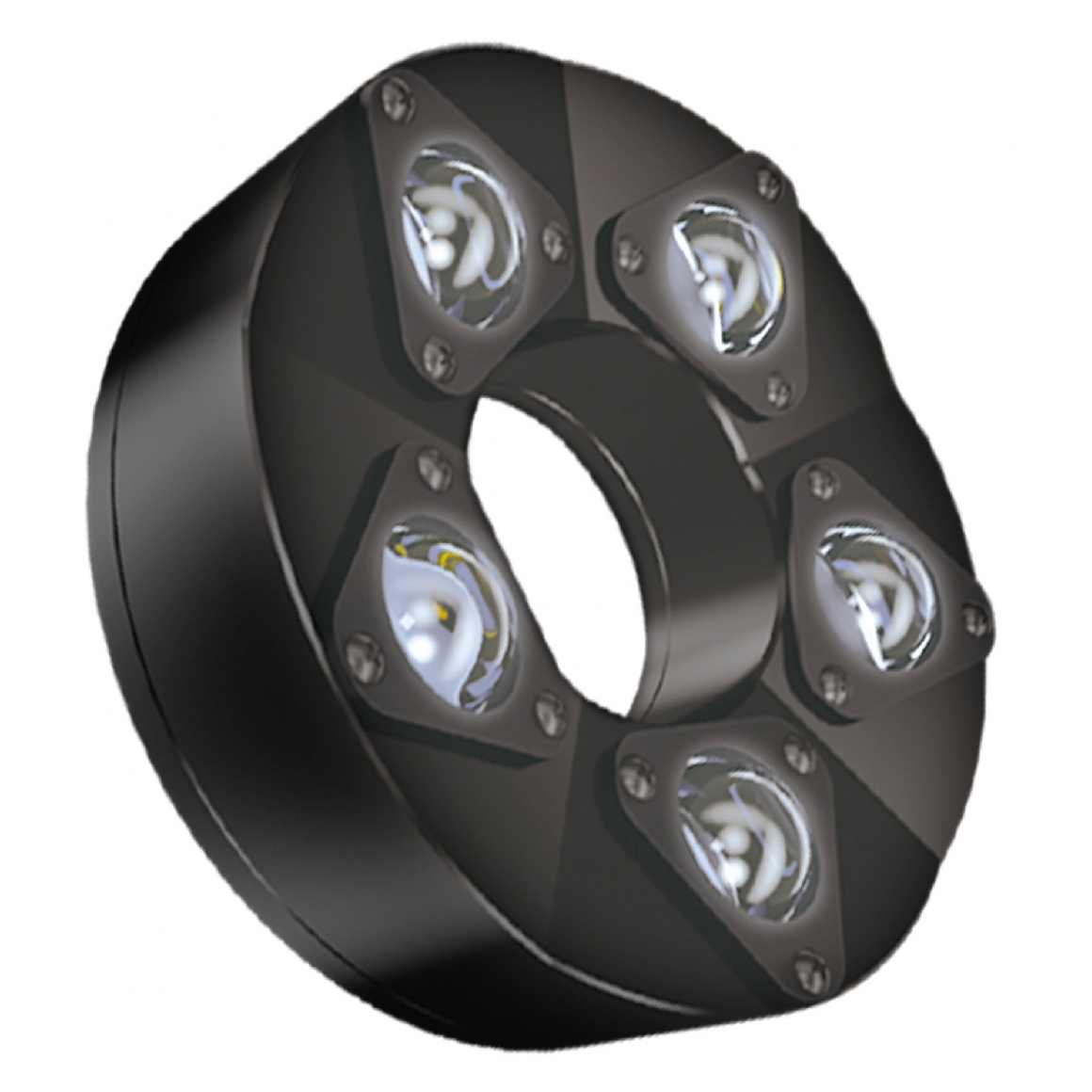

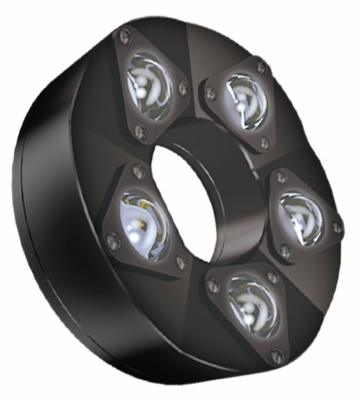

These CCS waterproof Ring Lights ensure the brightness with condensing lenses.
IP67 compliance. Adopting an M12 connector.

產品內容

型號 Model	顏色 Color	輸入電壓/消耗瓦數 Peak wavelength/ Relative color temperature (typ.)	波長 Power Consumption (max.)	重量 Weight (max.)
HLDR-IP67-100RD	Red	627 nm	18 W	420 g
HLDR-IP67-100SW	White	6,500 K	18 W	420 g
HLDR-IP67-100UV2-365	UV	365nm	18 W	420 g

型號
Model

顏色
Color

輸入電壓/消耗瓦數
Peak wavelength/ Relative color temperature (typ.)

波長
Power Consumption (max.)

重量
Weight

(max.)

HLDR-IP67-100RD

Red

627 nm

18 W

420 g

HLDR-IP67-100SW

White

6,500 K

18 W

420 g

HLDR-IP67-100UV2-365

365nm

18 W

420 g
