CCS LED光源 LFV3 Series 同軸

Light Unit

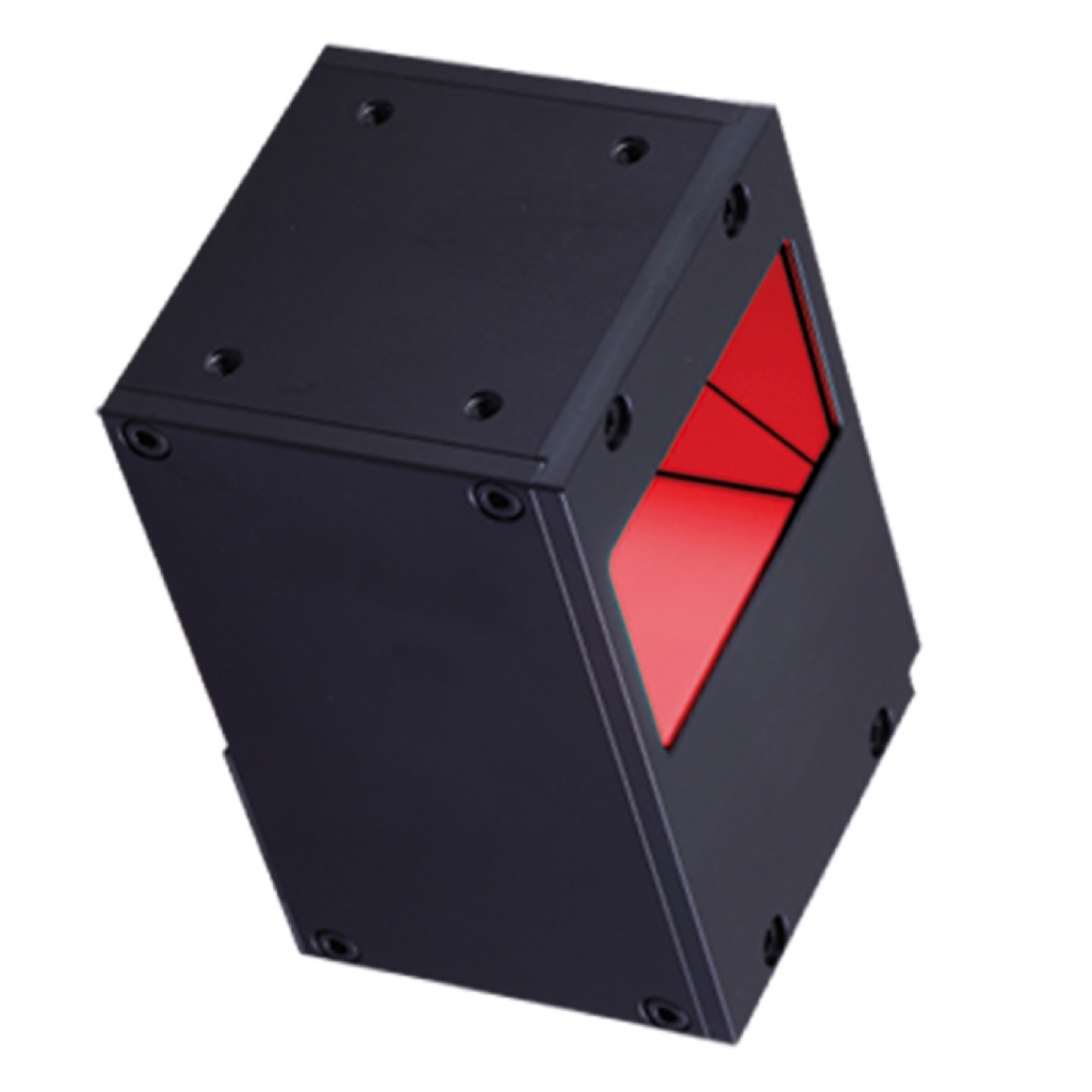

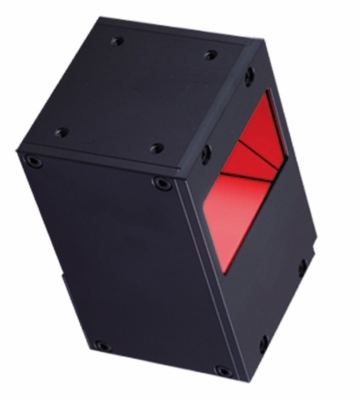

These CCS Coaxial Lights have a half mirror to align the diffused light from the LED array to the same optical axis as the camera lens.
Mirror surface workpieces are uniformly illuminated without unevenness.
The diffusion plate is adjustable and exchangeable.

加入追蹤

產品內容

型號 Model	顏色 Color	輸入電壓 Peak wavelength/ Relative color temperature (typ.)	消耗瓦數 Power Consumption (max.)	重量 Weight (max.)
LFV3-34RD	Red	635 nm	3.7 W	80 g
LFV3-34SW	White	6,000 K	3.2 W	80 g
LFV3-34BL	Blue	470 nm	3.2 W	80 g
LFV3-35RD	Red	630 nm	3.1 W	175 g
LFV3-35SW	White	6,500 K	3.7 W	175 g
LFV3-35BL	Blue	460 nm	3.1 W	175 g
LFV3-40RD	Red	635 nm	4.6 W	100 g
LFV3-40SW	White	6,000 K	4.6 W	100 g
LFV3-40BL	Blue	470 nm	4.6 W	100 g
LFV3-50RD	Red	630 nm	8.1 W	335 g
LFV3-50SW	White	6,500 K	11 W	335 g
LFV3-50BL	Blue	460 nm	9.1 W	335 g
LFV3-50X100RD	Red	630 nm	17 W	530 g
LFV3-50X100SW	White	6,500 K	20 W	530 g
LFV3-50X100BL	Blue	460 nm	17 W	530 g
LFV3-70RD	Red	630 nm	13 W	620 g
LFV3-70SW	White	6,500 K	19 W	620 g
LFV3-70BL	Blue	460 nm	16 W	620 g
LFV3-100RD	Red	630 nm	22 W	1,060 g
LFV3-100SW	White	6,500 K	27 W	1,060 g
LFV3-100BL	Blue	460 nm	27 W	1,060 g
LFV3-130RD	Red	630 nm	31 W	1,750 g
LFV3-130SW	White	6,500 K	46 W	1,750 g
LFV3-130BL	Blue	460 nm	38 W	1,750 g
LFV3-200RD	Red	630 nm	43 W	4,350 g
LFV3-200SW	White	6,500 K	64 W	4,350 g
LFV3-200BL	Blue	460 nm	53 W	4,350 g
LFV3-CP-13RD	Red	635 nm	2.1 W	37 g
LFV3-CP-13SW	White	6,000 K	2.3 W	37 g
LFV3-CP-13BL	Blue	470 nm	1.3 W	37 g
LFV3-CP-18RD	Red	635 nm	3.3 W	70 g
LFV3-CP-18SW	White	6,000 K	4.1 W	70 g
LFV3-CP-18BL	Blue	470 nm	3.4 W	70 g
