CCS LED光源 LFX3-PT Series 平面

Light Unit

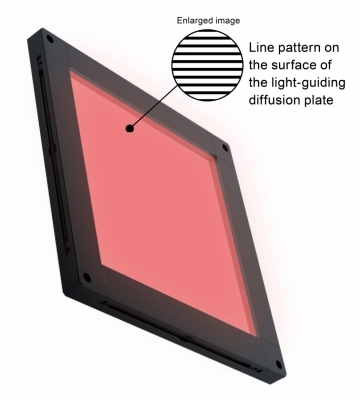

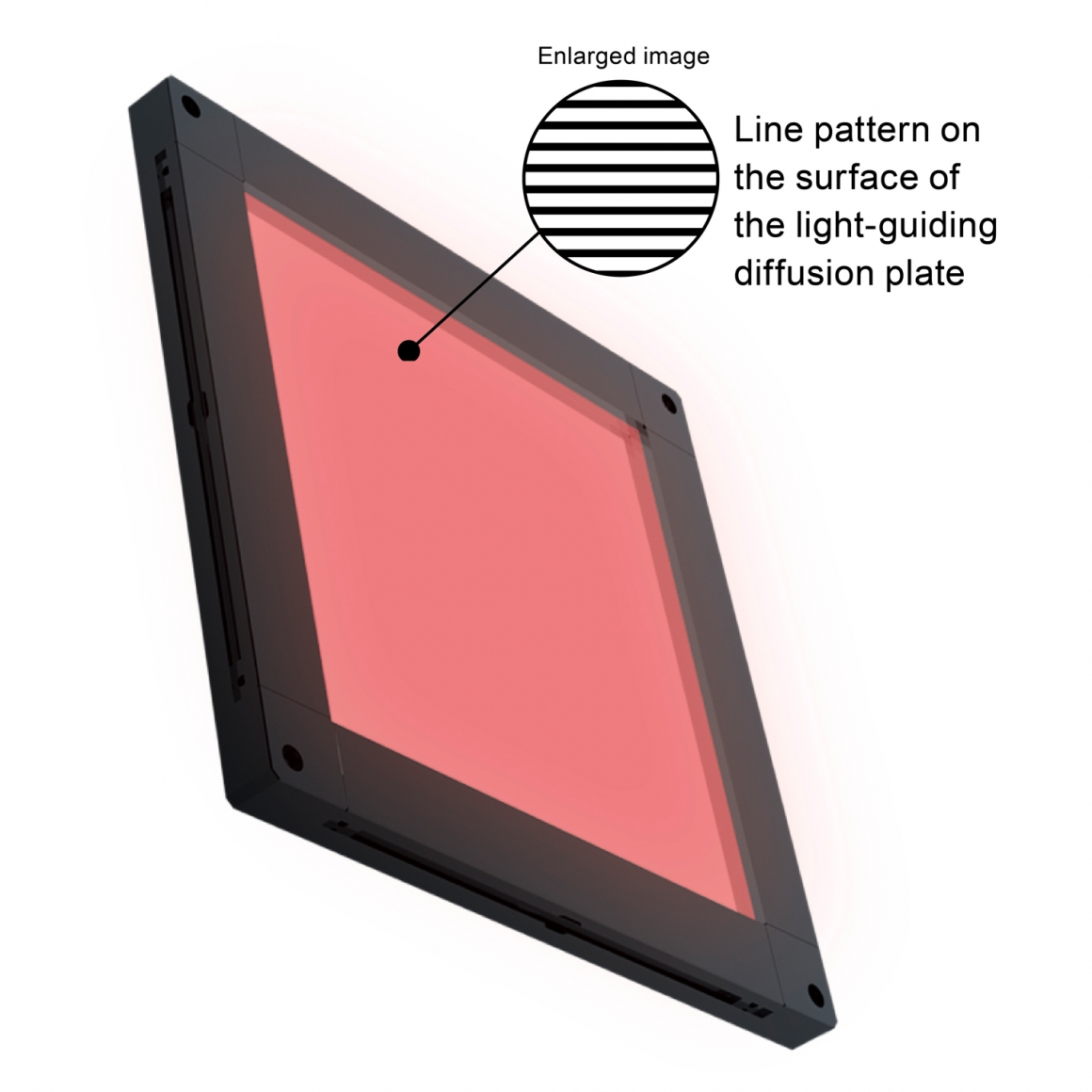

A cutting-edge method from CCS for inspecting bumps on a reflective surface.

We have two types of line intervals to match your inspection conitions:
1 mm type: The end of the model name is "A."
2 mm type: The end of the model name is "B."

加入追蹤

產品內容

型號 Model name	LED 顏色 LED color	輸入電壓/消耗瓦數 Power consumption (max.)	波長 Peak wavelength/ Correlated color temperature (typ.)	重量 Weight (max.)
LFX3-50RD-PT-A/-B	Red	13 W	632 nm	230 g
LFX3-50SW-PT-A/-B	White	12 W	6,800 K
LFX3-50BL-PT-A/-B	Blue	6.1 W	469 nm
LFX3-50IR860-PT-A/-B	Infrared	6.6 W	857 nm
LFX3-75RD-PT-A/-B	Red	13 W	632 nm	320 g
LFX3-75SW-PT-A/-B	White	18 W	6,800 K
LFX3-75BL-PT-A/-B	Blue	9.1 W	469 nm
LFX3-75IR860-PT-A/-B	Infrared	14 W	857 nm
LFX3-100RD-PT-A/-B	Red	19 W	632 nm	400 g
LFX3-100SW-PT-A/-B	White	23 W	6,800 K
LFX3-100BL-PT-A/-B	Blue	13 W	469 nm
LFX3-100IR860-PT-A/-B	Infrared	14 W	857 nm
LFX3-150RD-PT-A/-B	Red	25 W	632 nm	620 g
LFX3-150SW-PT-A/-B	White	35 W	6,800 K
LFX3-150BL-PT-A/-B	Blue	19 W	469 nm
LFX3-150IR860-PT-A/-B	Infrared	20 W	857 nm
LFX3-200RD-PT-A/-B	Red	37 W	632 nm	910 g
LFX3-200SW-PT-A/-B	White	46 W	6,800 K
LFX3-200BL-PT-A/-B	Blue	25 W	469 nm
LFX3-200IR860-PT-A/-B	Infrared	27 W	857 nm
