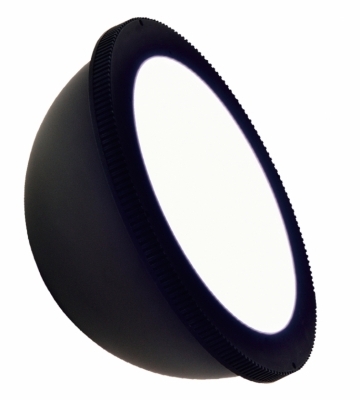

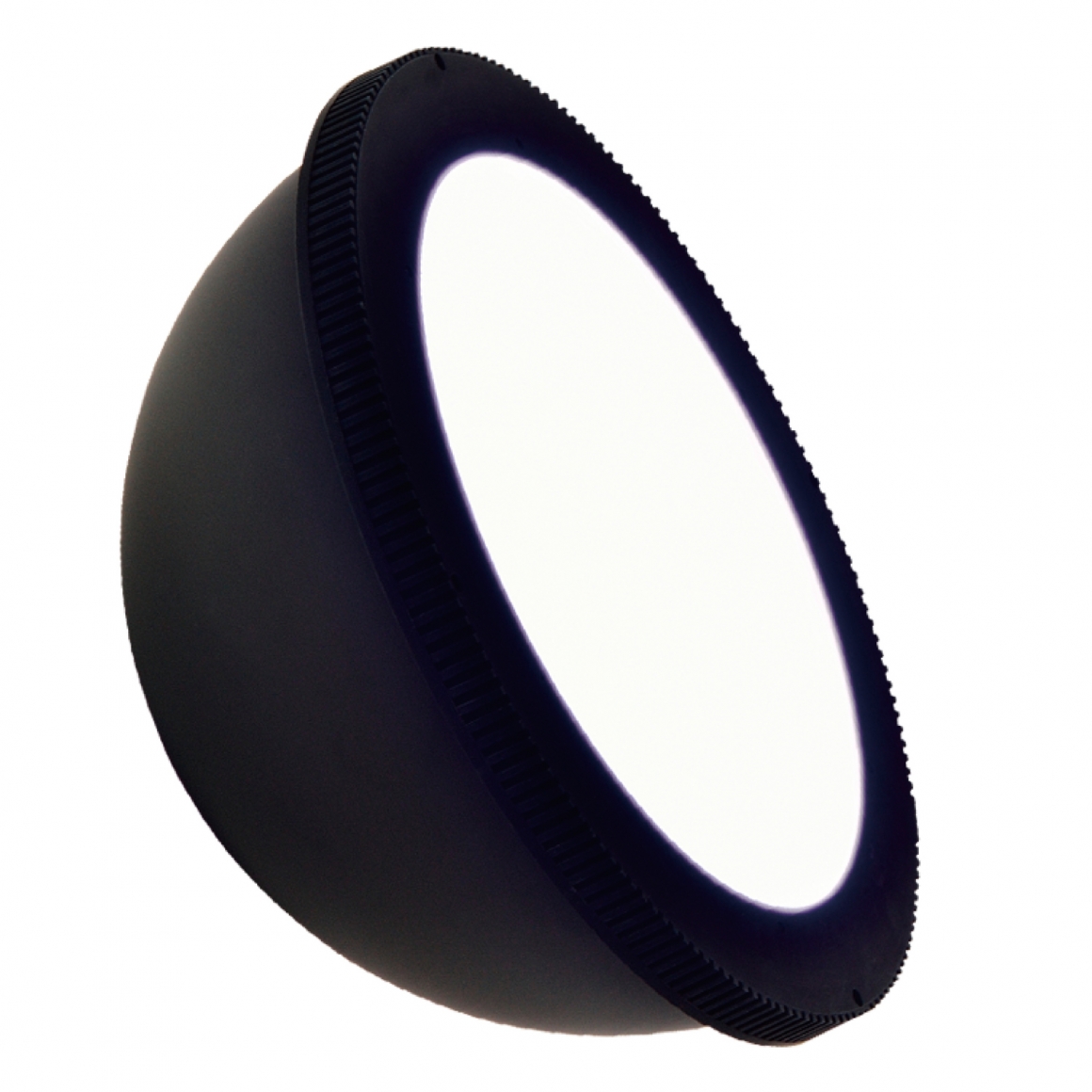

CCS LED光源 HPD2 Series 碗型

Light Unit

These are "high-power", "uniform", and "easy to use" CCS Dome Lights with three times the brightness of the previous models.
Increased size variations, full color (RGB) models, and infrared (860 nm) models were added in the standard product lineup.
Abundant lineup of optional products such as the joint brackets is provided.

加入追蹤

產品內容

型號 Model	LED 顏色 LED color	輸入電壓/消耗瓦數 Power consumption (max.)	波長 Peak wavelength / Correlated color temperature (typ.)	重量 Weight (max.)
HPD2-75RD	Red	17 W	635 nm	140 g
HPD2-75SW	White	16 W	6500 K
HPD2-75BL	Blue	16 W	470 nm
HPD2-75FC	(Red/Green/Blue)	6.0 W (Red: 1.4 W / Green: 2.3 W / Blue: 2.3 W)	(622 nm / 525 nm / 470 nm)
HPD2-75IR860	Infrared	12 W	860 nm
HPD2-100RD	Red	17 W	635 nm	160 g
HPD2-100SW	White	23 W	6500 K
HPD2-100BL	Blue	23 W	470 nm
HPD2-100FC	(Red/Green/Blue)	11 W (Red: 2.8 W / Green: 4.1 W / Blue: 4.1 W)	(622 nm / 525 nm / 470 nm)
HPD2-100IR860	Infrared	23 W	860 nm
HPD2-150RD	Red	27 W	635 nm	285 g
HPD2-150SW	White	27 W	6500 K
HPD2-150BL	Blue	27 W	470 nm
HPD2-150FC	(Red/Green/Blue)	15 W (Red: 3.7W / Green: 5.5W / Blue: 5.5W)	(622 nm / 525 nm / 470 nm)
HPD2-150IR860	Infrared	35 W	860 nm
HPD2-200RD	Red	34 W	635 nm	460 g
HPD2-200SW	White	41 W	6500 K
HPD2-200BL	Blue	41 W	470 nm
HPD2-200FC	(Red/Green/Blue)	19 W (Red: 4.6W / Green: 6.9W / Blue: 6.9W)	(622 nm / 525 nm / 470 nm)
HPD2-200IR860	Infrared	46 W	860 nm
HPD2-250RD	Red	45 W	635 nm	650 g
HPD2-250SW	White	46 W	6500 K
HPD2-250BL	Blue	46 W	470 nm
HPD2-250FC	(Red/Green/Blue)	24 W (Red: 5.5W / Green: 9.1W / Blue: 9.1W)	(622 nm / 525 nm / 470 nm)
HPD2-250IR860	Infrared	46 W	860 nm
HPD2-400RD	Red	45 W	635 nm	1,300g
HPD2-400SW	White	46 W	6500 K
HPD2-400BL	Blue	46 W	470 nm
HPD2-400FC	(Red/Green/Blue)	30 W (Red: 7.3W / Green: 11W / Blue: 11W)	(622 nm / 525 nm / 470 nm)
HPD2-400IR860	Infrared	46 W	860 nm
