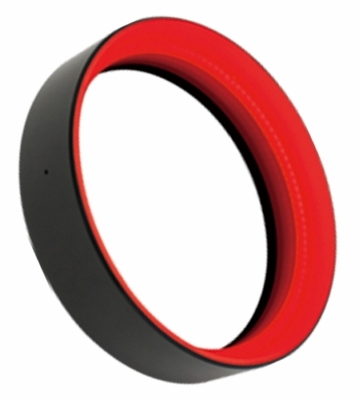

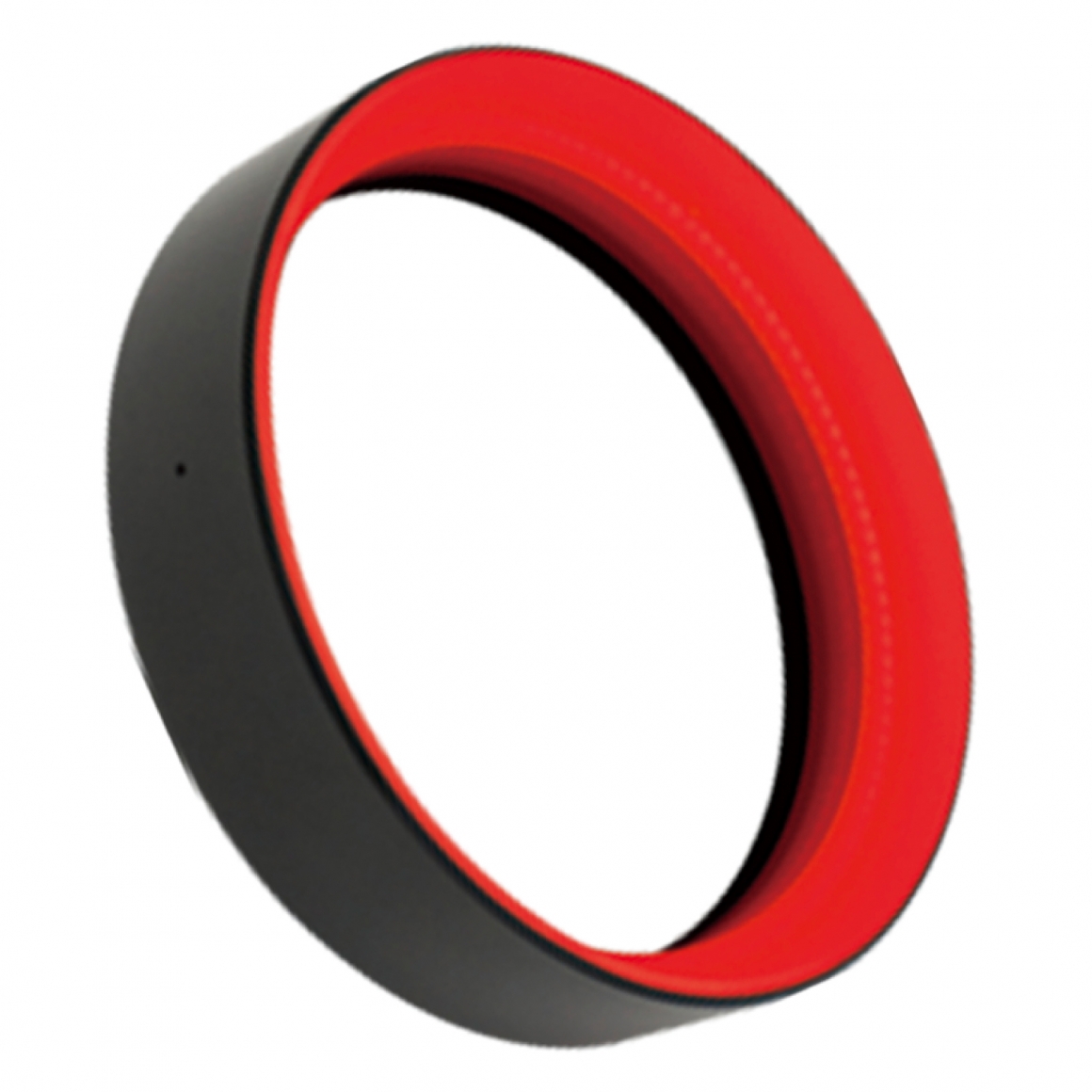

CCS LED光源 FPR Series 環型
Light Unit
At a low angle, these CCS Ring Lights can be used to highlight and image the characters and scratches in a dark field.
At a high angle, these Ring Lights can be used to uniformly image the entire workpiece in a bright field.
At a high angle, these Ring Lights can be used to uniformly image the entire workpiece in a bright field.
-
型號
ModelLED 顏色
LED color輸入電壓/消耗瓦數
Power consumption (max.)波長
Peak wavelength/Correlated color temperature (typ.)重量
Weight (max.)FPR-100RD2
Red
24V / 6.1W
630nm
220g
FPR-100SW2
White
24V / 7.6W
5500K
FPR-100BL2
Blue
470nm
FPR-100GR2
Green
525nm
FPR-136RD2
Red
24V / 9.1W
630nm
300g
FPR-136SW2
White
24V / 12W
5500K
280g
FPR-136BL2
Blue
470nm
300g
FPR-136GR2
Green
525nm
FPR-180RD2
Red
24V / 13W
630nm
400g
FPR-180SW2
White
24V / 16W
5500K
380g
FPR-180BL2
Blue
470nm
400g
FPR-180GR2
Green
525nm
