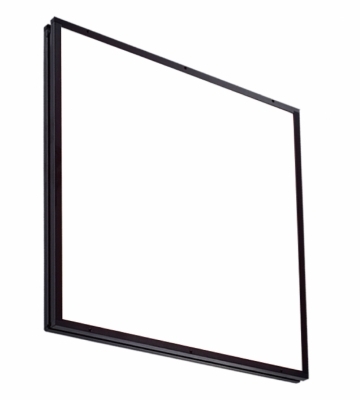

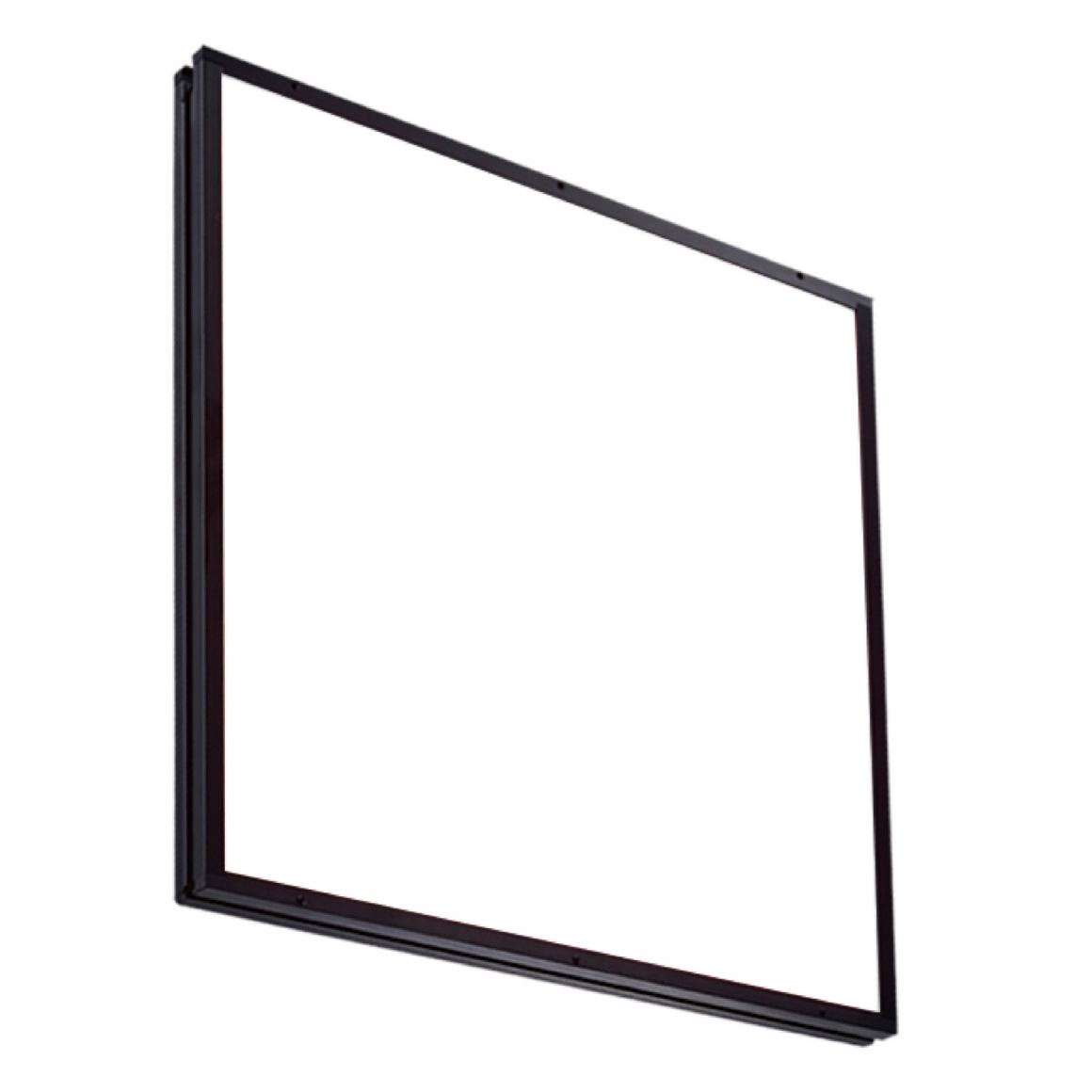

CCS LED光源 TH2-PM Series

Light Unit

This CCS Light Unit emits white light.
High-directivity type.

產品內容

型號 Model name	LED 顏色 LED color	輸入電壓 Power consumption	波長/溫差 Peak wavelength/ correlated color temperature	重量 Weight
TH2-27X27RD-PM	Red	24 V / 2.5 W	635 nm	40 g
TH2-27X27SW-PM	White	24 V / 3.1 W	5,300 K
TH2-27X27BL-PM	Blue	24 V / 3.1 W	465 nm
TH2-43X35RD-PM	Red	24 V / 5.7 W	635 nm	60 g
TH2-43X35SW-PM	White	24 V / 5.5 W	5,300 K
TH2-43X35BL-PM	Blue	24 V / 5.5 W	465 nm
TH2-51X51RD-PM	Red	24 V / 7.3 W	635 nm	80 g
TH2-51X51SW-PM	White	24 V / 9.9 W	5,300 K
TH2-51X51BL-PM	Blue	24 V / 9.9 W	465 nm
TH2-63X60RD-PM	Red	24 V / 9.9 W	635 nm	120 g
TH2-63X60SW-PM	White	24 V / 9.7 W	5,300 K
TH2-63X60BL-PM	Blue	24 V / 9.7 W	465 nm
TH2-83X75RD-PM	Red	24 V / 15 W	635 nm	170 g
TH2-83X75SW-PM	White	24 V / 16 W	5,300 K
TH2-83X75BL-PM	Blue	24 V / 16 W	465 nm
TH2-100X100RD-PM	Red	24 V / 26 W	635 nm	240 g
TH2-100X100SW-PM	White	24 V / 25 W	5,300 K
TH2-100X100BL-PM	Blue	24 V / 25 W	465 nm
TH2-140X105RD-PM	Red	24 V / 28 W	635 nm	320 g
TH2-140X105SW-PM	White	24 V / 28 W	5,300 K
TH2-140X105BL-PM	Blue	24 V / 28 W	465 nm
TH2-160X120RD-PM	Red	24 V / 34 W	635 nm	390 g
TH2-160X120SW-PM	White	24 V / 35 W	5,300 K
TH2-160X120BL-PM	Blue	24 V / 35 W	465 nm
