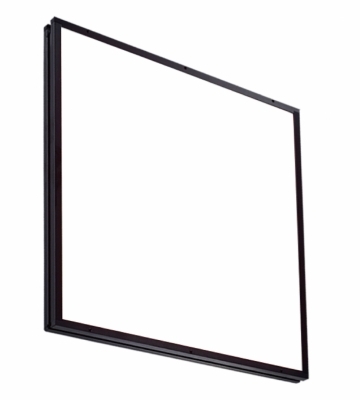

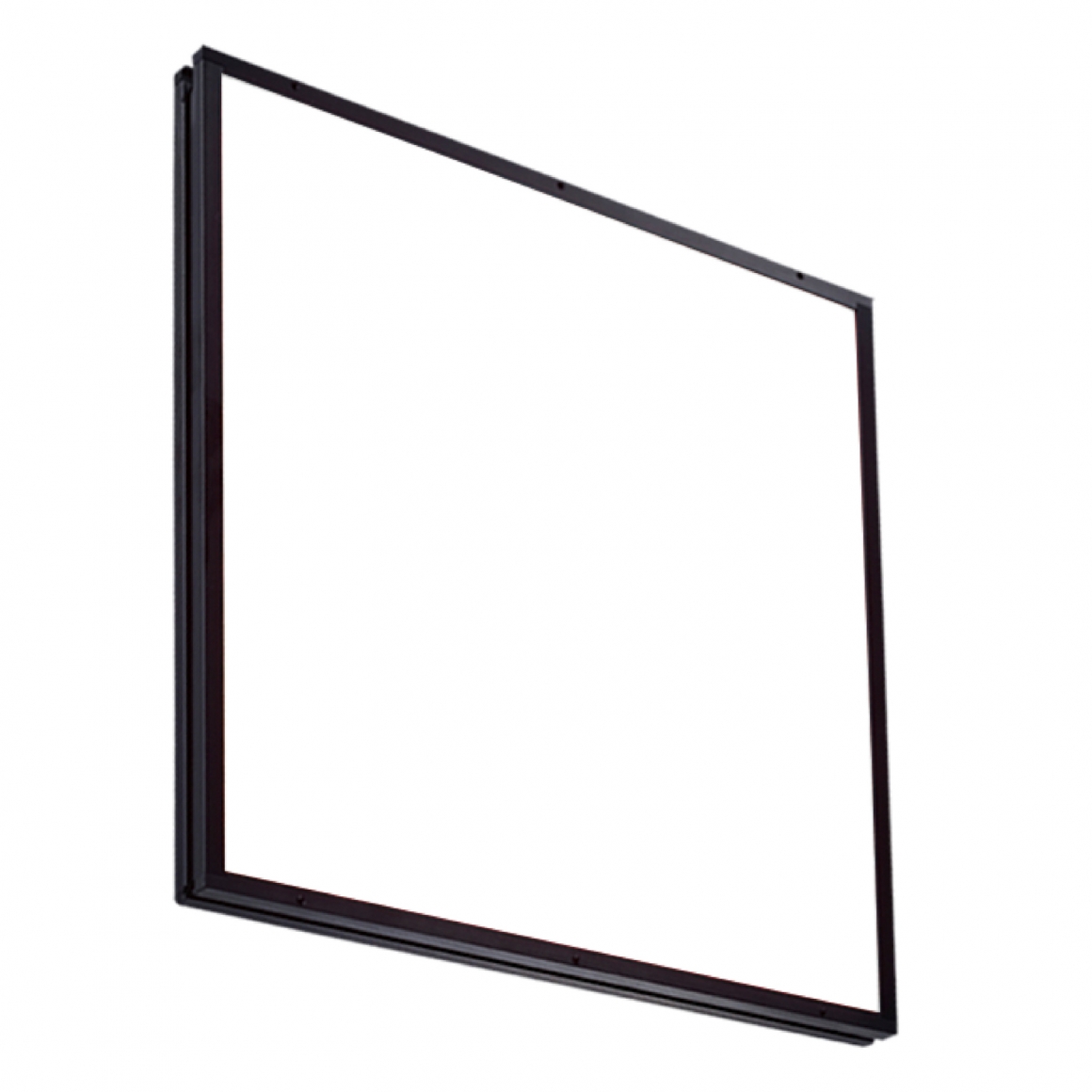

CCS LED光源 TH2 Series 平面

Light Unit

These CCS high-output Flat Light Units are equipped with improved light directivity. This makes them ideal for dimension measurements and other inspections that require outline extraction of the workpiece.

加入追蹤

產品內容

型號 Model name	LED 顏色 LED color	輸入電壓 Power consumption	波長/溫差 Peak wavelength/ correlated color temperature*	重量 Weight
TH2-27X27RD	Red	24 V / 2.3 W	635 nm	30 g
TH2-27X27SW	White	24 V / 2.9 W	5,800 K
TH2-27X27BL	Blue	24 V / 2.7 W	465 nm
TH2-43X35RD	Red	24 V / 4.9 W	635 nm	40 g
TH2-43X35SW	White	24 V / 4.8 W	5,800 K
TH2-43X35BL	Blue	24 V / 4.8 W	465 nm
TH2-51X51RD	Red	24 V / 6.5 W	635 nm	60 g
TH2-51X51SW	White	24 V / 8.2 W	5,800 K
TH2-51X51BL	Blue	24 V / 8.2 W	465 nm
TH2-63X60RD	Red	24 V / 9.9 W	635 nm	100 g
TH2-63X60SW	White	24 V / 9.7 W	5,800 K
TH2-63X60BL	Blue	24 V / 9.7 W	465 nm
TH2-83X75RD	Red	24 V / 15 W	635 nm	140 g
TH2-83X75SW	White	24 V / 16 W	5,800 K
TH2-83X75BL	Blue	24 V / 16 W	465 nm
TH2-100X100RD	Red	24 V / 26 W	635 nm	200 g
TH2-100X100SW	White	24 V / 25 W	5,800 K
TH2-100X100BL	Blue	24 V / 25 W	465 nm
TH2-140X105RD	Red	24 V / 28 W	635 nm	260 g
TH2-140X105SW	White	24 V / 28 W	5,800 K
TH2-140X105BL	Blue	24 V / 28 W	465 nm
TH2-160X120RD	Red	24 V / 35 W	635 nm	310 g
TH2-160X120SW	White	24 V / 35 W	5,800 K
TH2-160X120BL	Blue	24 V / 35 W	465 nm
TH2-200X150RD	Red	24 V / 45 W	635 nm	440 g
TH2-200X150SW	White	24 V / 44 W	5,800 K
TH2-200X150BL	Blue	24 V / 44 W	465 nm
TH2-224X170RD	Red	24 V / 66 W	635 nm	540 g
TH2-224X170SW	White	24 V / 66 W	5,800 K
TH2-224X170BL	Blue	24 V / 66 W	465 nm
TH2-211X200RD	Red	24 V / 67 W	635 nm	580 g
TH2-211X200SW	White	24 V / 65 W	5,800 K
TH2-211X200BL	Blue	24 V / 65 W	465 nm
