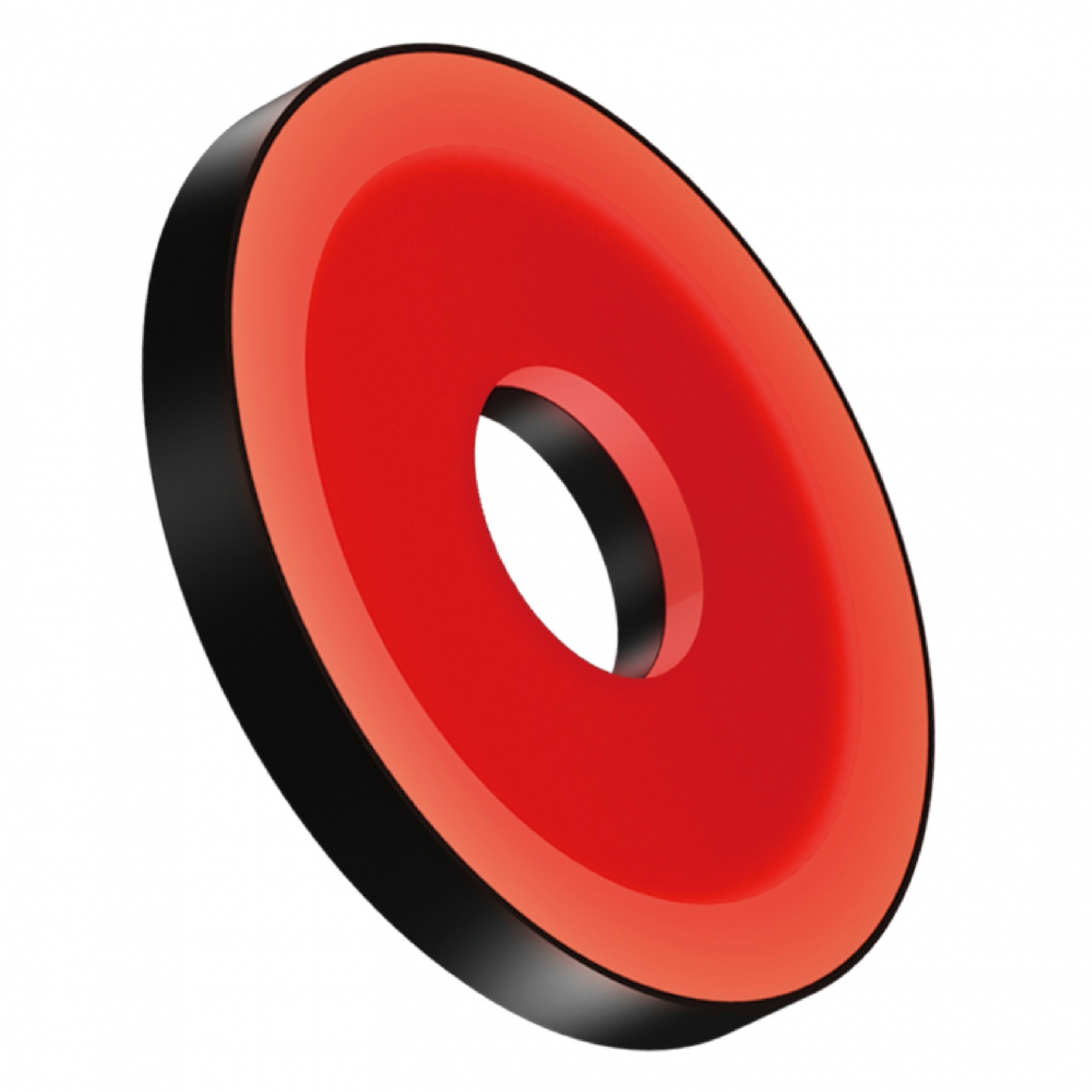

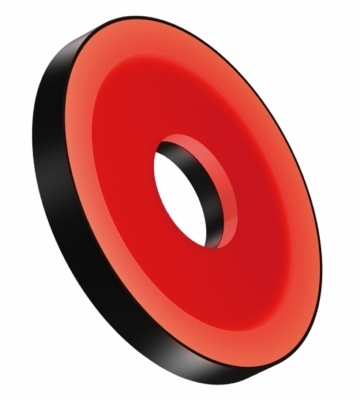

CCS LED光源 LFR Series 環型

Light Unit

LEDs are embedded around a light-guiding diffusion plate.
Uniform light is radiated from a flat emitting surface.
This CCS product lineup includes the LFR-100K and LFR-130K Light Units, in which light is radiated from an emitting surface arranged at an angle.

加入追蹤

產品內容

型號 Model name	LED 顏色LED color	輸入電壓/消耗瓦數 Power consumption	波長/溫差 Peak wavelength/ correlated color temperature	重量 Weight
LFR-100RD2	Red	24 V / 3.6 W	630 nm	120 g
LFR-100SW2	White	24 V / 4.6 W	5,500 K	170 g
LFR-100BL2	Blue		470 nm
LFR-100GR2	Green		525 nm
LFR-100RD2-K	Red	24 V / 3.6 W	630 nm	140 g
LFR-100KSW2	White	24 V / 4.6 W	5,500 K	140 g
LFR-100BL2-K	Blue	24 V / 4.6 W	470 nm	190 g
LFR-100GR2-K	Green	24 V / 4.5 W	525 nm	190 g
LFR-130RD2	Red	24 V / 4.6 W	630 nm	250 g
LFR-130SW2	White	24 V / 5.7 W	5,500 K
LFR-130BL2	Blue		470 nm
LFR-130GR2	Green		525 nm
LFR-130RD2-K	Red	24 V / 4.6 W	630 nm	190 g
LFR-130KSW2	White	24 V / 5.7 W	5,500 K	200 g
LFR-130BL2-K	Blue		470 nm	190 g
LFR-130GR2-K	Green		525 nm	190 g
LFR-200RD2	Red	24 V / 8.1 W	630 nm	490 g
LFR-200SW2	White	24 V / 11 W	5,500 K
LFR-200BL2	Blue	24 V / 11 W	470 nm
LFR-250RD2	Red	24 V / 11 W	630 nm	1,080 g
LFR-250SW2	White	24 V / 13 W	5,500 K	1,090 g
LFR-250BL2	Blue	24 V / 13 W	470 nm	1,080 g
LFR-330RD2	Red	24 V / 14 W	630 nm	1,500 g
