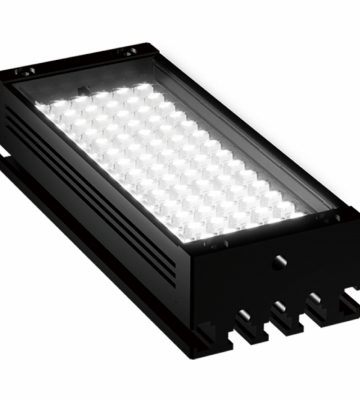

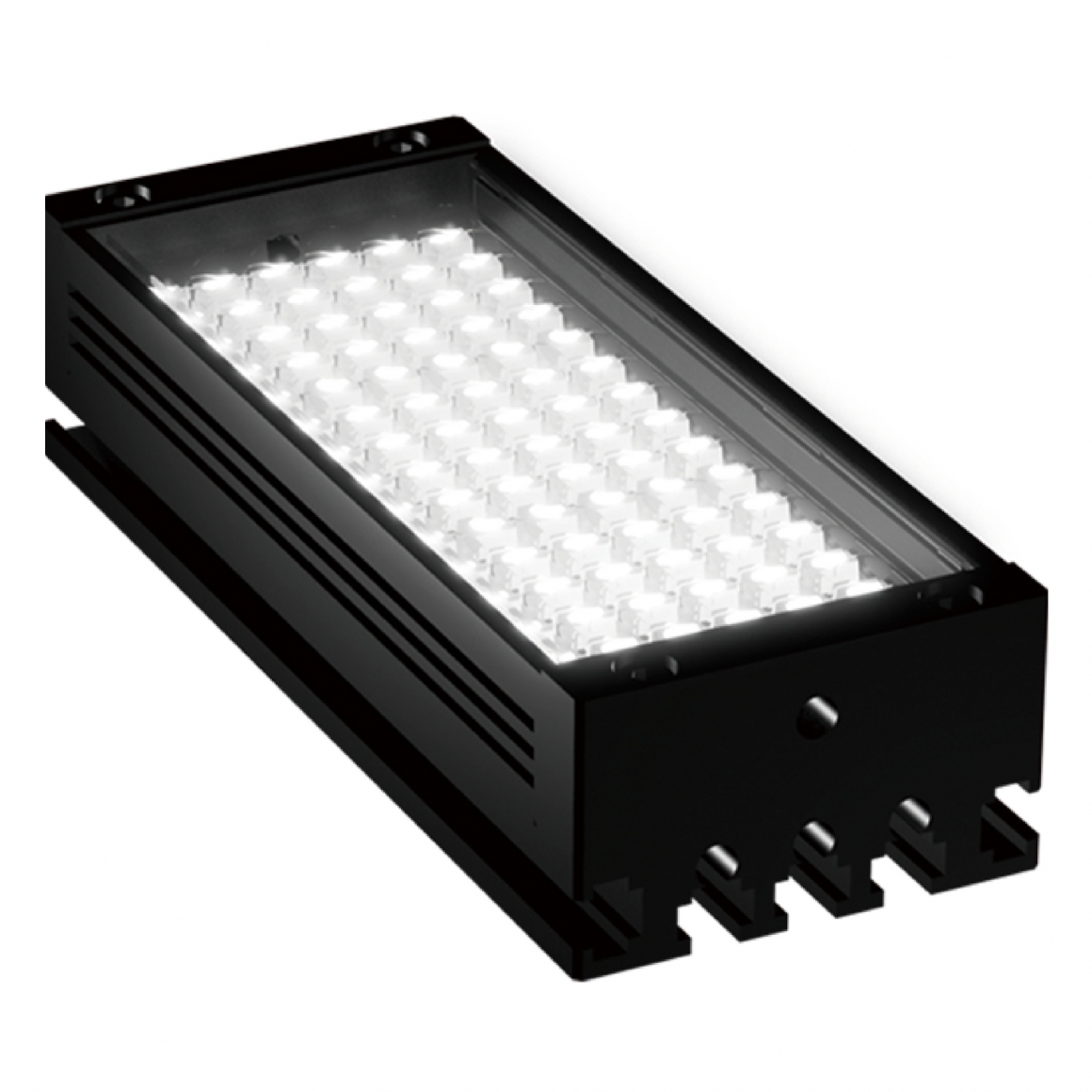

CCS LED光源 LDL2 Series 條型
Light UnitBecause CCS Bar Lights can freely adjust their illuminating direction and angle to match the workpiece, they can provide the optimal image.
-
型號
Model
LED 顏色
LED color
發光面
Light-emitting surface size
輸入電壓
Input voltage
消耗瓦數
Power consumption
重量
Weight
LDL2-33×8RD
LDL2-33×8SW
LDL2-33×8BL
LDL2-33×8GR
LDL2-33×8IR850
Red
White
Blue
Green
Infrared
33 x 8 mm
24 V
1.3 W
0.8 W
1.3 W
20 g
LDL2-41X16RD
LDL2-41X16SW
LDL2-41X16BL
LDL2-41X16GR
Red
White
Blue
Green
41 x 16 mm
24 V
1.9 W
50 g
LDL2-80X16RD
LDL2-80X16SW
LDL2-80X16BL
LDL2-80X16GR
Red
White
Blue
Green
80 x 16 mm
24 V
3.8 W
75 g
LDL2-119X16RD
LDL2-119X16SW
LDL2-119X16BL
LDL2-119X16GR
Red
White
Blue
Green
119 x 16 mm
24 V
5.7 W
95 g
LDL2-41X16RD-WD
LDL2-41X16SW-WD
LDL2-41X16BL-WD
LDL2-41X16GR-WD
Red
White
Blue
Green
41 x 16 mm
24 V
1.9 W
50 g
LDL2-80X16RD-WD
LDL2-80X16SW-WD
LDL2-80X16BL-WD
LDL2-80X16GR-WD
Red
White
Blue
Green
80 x 16 mm
24 V
3.8 W
75 g
LDL2-119X16RD-WD
LDL2-119X16SW-WD
LDL2-119X16BL-WD
LDL2-119X16GR-WD
Red
White
Blue
Green
119 x 16 mm
24 V
5.7 W
95 g
LDL2-74X30RD
LDL2-74X30SW
LDL2-74X30BL
LDL2-74X30GR
Red
White
Blue
Green
74 x 30 mm
24 V
5.7 W
100 g
LDL2-146X30RD
LDL2-146X30SW
LDL2-146X30BL
LDL2-146X30GR
Red
White
Blue
Green
146 x 30 mm
24 V
12 W
170 g
LDL2-218X30RD
LDL2-218X30SW
LDL2-218X30BL
LDL2-218X30GR
Red
White
Blue
Green
218 x 30 mm
24 V
18 W
240 g
LDL2-266X30RD
LDL2-266X30SW
LDL2-266X30BL
LDL2-266X30GR
Red
White
Blue
Green
266 x 30 mm
24 V
21 W
280 g
LDL2-74X30RD-WD
LDL2-74X30SW-WD
LDL2-74X30BL-WD
LDL2-74X30GR-WD
Red
White
Blue
Green
74 x 30 mm
24 V
5.7 W
100 g
LDL2-146X30RD-WD
LDL2-146X30SW-WD
LDL2-146X30BL-WD
LDL2-146X30GR-WD
Red
White
Blue
Green
146 x 30 mm
24 V
12 W
170 g
LDL2-218X30RD-WD
LDL2-218X30SW-WD
LDL2-218X30BL-WD
LDL2-218X30GR-WD
Red
White
Blue
Green
218 x 30 mm
24 V
18 W
240 g
LDL2-266X30RD-WD
LDL2-266X30SW-WD
LDL2-266X30BL-WD
LDL2-266X30GR-WD
Red
White
Blue
Green
266 x 30 mm
24 V
21 W
280 g
