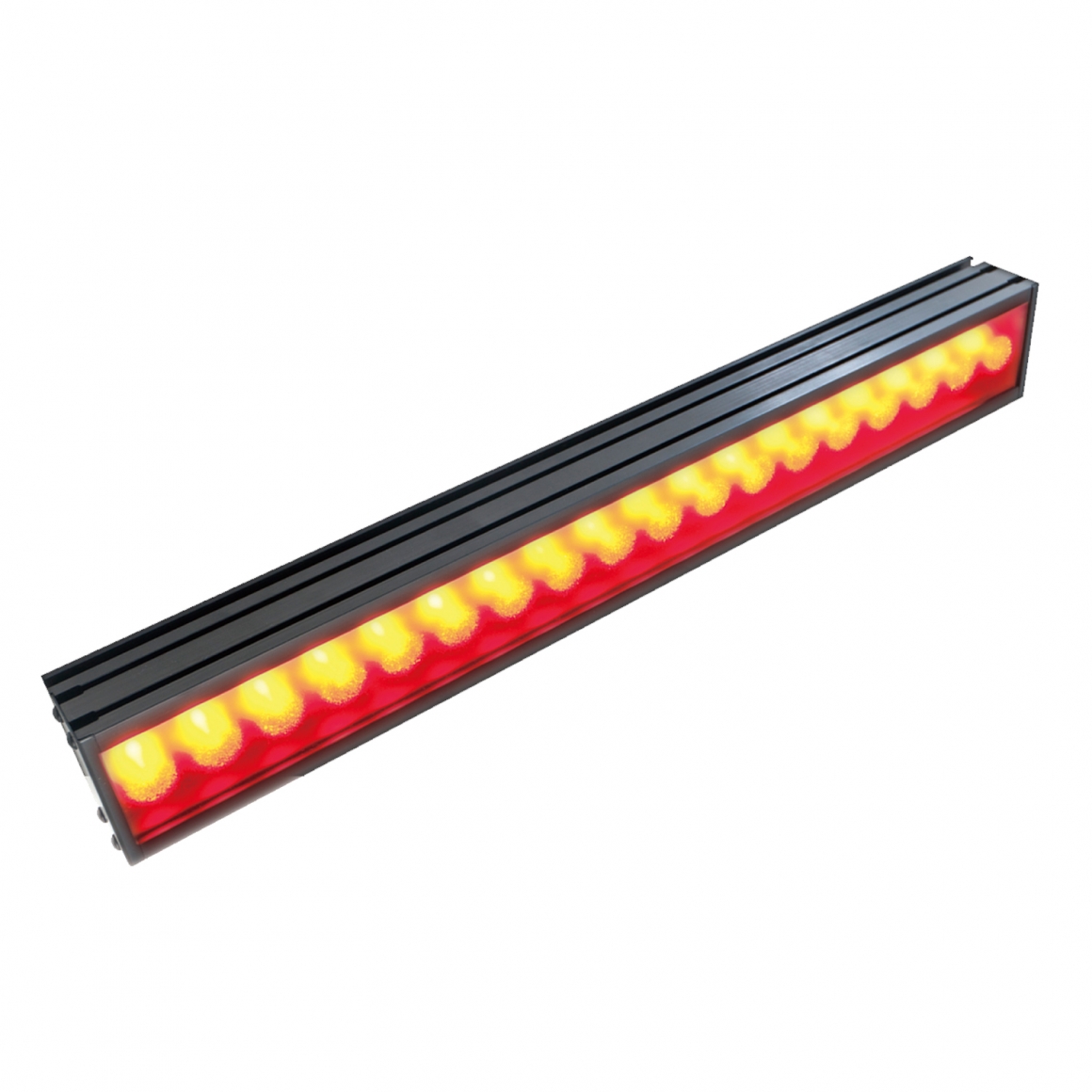

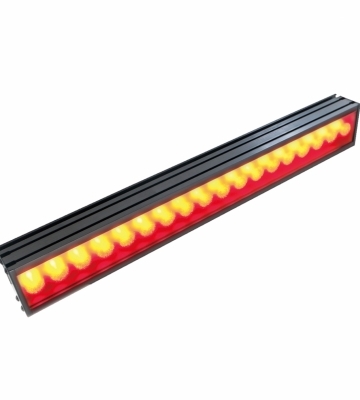

CCS LED光源 HLDL2 Series 條型

Light Unit

CCS Bar Lights that are perfect for large workpieces.
By using lenses, we provide the narrow type, which allows for convergent illumination, and the wide type, which uses diffused illumination over a wide area.
Long-distance irradiation is the specialty of these Bar Lights.

加入追蹤

產品內容

型號 Model Name	LED 顏色 LED color	輸入電壓/消耗瓦數 Power Consumption	發光面 Emitting Surface (L × W)	連接線 Cable Connector
HLDL2-150x45RD-DF-N	Red	14 W	150x45 mm	SM connector
HLDL2-300x45RD-DF-N	Red	28 W	300x45 mm
HLDL2-450x45RD-DF-N	Red	42 W	450x45 mm
HLDL2-600x45RD-DF-N	Red	56 W	600x45 mm	EL connector
HLDL2-750x45RD-DF-N	Red	70 W	750x45 mm
HLDL2-900x45RD-DF-N	Red	84 W	900x45 mm
HLDL2-1050x45RD-DF-N	Red	98 W	1050x45 mm
HLDL2-1200x45RD-DF-N	Red	111 W	1200x45 mm
HLDL2-150x45RD-DF-W	Red	14 W	150x45 mm	SM connector
HLDL2-300x45RD-DF-W	Red	28 W	300x45 mm
HLDL2-450x45RD-DF-W	Red	42 W	450x45 mm
HLDL2-600x45RD-DF-W	Red	56 W	600x45 mm	EL connector
HLDL2-750x45RD-DF-W	Red	70 W	750x45 mm
HLDL2-900x45RD-DF-W	Red	84 W	900x45 mm
HLDL2-1050x45RD-DF-W	Red	98 W	1050x45 mm
HLDL2-1200x45RD-DF-W	Red	111 W	1200x45 mm
Model Name	Red	Power Consumption (max.)	Emitting Surface (L × W)	Cable Connector
Model Name	Red	Power Consumption (max.)	Emitting Surface (L × W)	Cable Connector
HLDL2-150x45SW-DF-N	Red	16 W	150x45 mm	SM connector
HLDL2-300x45SW-DF-N	Red	31 W	300x45 mm
HLDL2-450x45SW-DF-N	Red	46 W	450x45 mm
HLDL2-600x45SW-DF-N	Red	61 W	600x45 mm	EL connector
HLDL2-750x45SW-DF-N	Red	76 W	750x45 mm
HLDL2-900x45SW-DF-N	Red	91 W	900x45 mm
HLDL2-1050x45SW-DF-N	Red	106 W	1050x45 mm
HLDL2-1200x45SW-DF-N	Red	121 W	1200x45 mm
HLDL2-150x45SW-DF-W	Red	16 W	150x45 mm	SM connector
HLDL2-300x45SW-DF-W	Red	31 W	300x45 mm
HLDL2-450x45SW-DF-W	Red	46 W	450x45 mm
HLDL2-600x45SW-DF-W	Red	61 W	600x45 mm	EL connector
HLDL2-750x45SW-DF-W	Red	76 W	750x45 mm
HLDL2-900x45SW-DF-W	Red	91 W	900x45 mm
HLDL2-1050x45SW-DF-W	Red	106 W	1050x45 mm
HLDL2-1200x45SW-DF-W	Red	121 W	1200x45 mm
HLDL2-150x45IR-DF-N	Red	12 W	150x45 mm	SM connector
HLDL2-300x45IR-DF-N	Red	24 W	300x45 mm
HLDL2-450x45IR-DF-N	Red	36 W	450x45 mm
HLDL2-600x45IR-DF-N	Red	48 W	600x45 mm	EL connector
HLDL2-750x45IR-DF-N	Red	60 W	750x45 mm
HLDL2-900x45IR-DF-N	Red	72 W	900x45 mm
HLDL2-1050x45IR-DF-N	Red	84 W	1050x45 mm
HLDL2-1200x45IR-DF-N	Red	96 W	1200x45 mm
HLDL2-150x45IR-DF-W	Red	12 W	150x45 mm	SM connector
HLDL2-300x45IR-DF-W	Red	24 W	300x45 mm
HLDL2-450x45IR-DF-W	Red	36 W	450x45 mm
HLDL2-600x45IR-DF-W	Red	48 W	600x45 mm	EL connector
HLDL2-750x45IR-DF-W	Red	60 W	750x45 mm
HLDL2-900x45IR-DF-W	Red	72 W	900x45 mm
HLDL2-1050x45IR-DF-W	Red	84 W	1050x45 mm
HLDL2-1200x45IR-DF-W	Red	96 W	1200x45 mm
