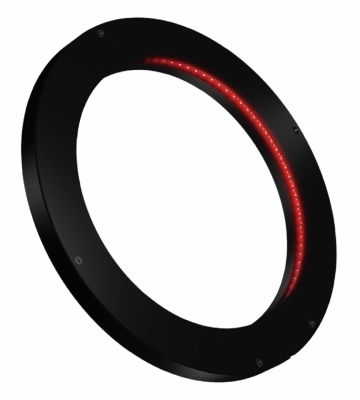

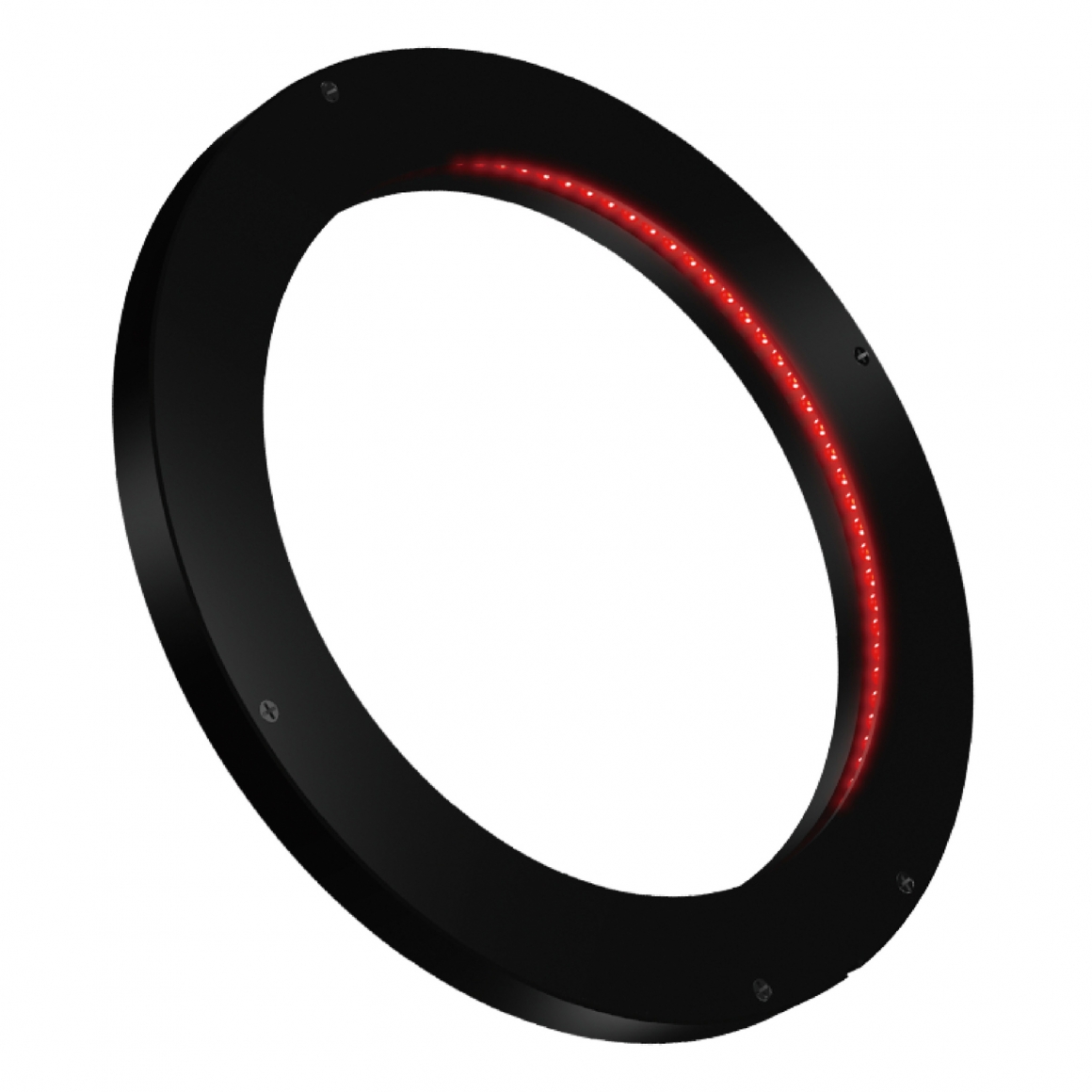

CCS LED光源 LDR-LA1 Series 環型

Light Unit

These CCS light units allows for illuminating closer to the workpiece than the LDR2-LA series.
Perfect for imaging of minute unevenness, damage, or engraved characters.

加入追蹤

產品內容

型號 Model name	LED顏色 LED color	輸入電壓/消耗瓦數 Power consumption	波長/溫差 Peak wavelength/ correlated color temperature	重量 Weight
LDR-75RD2-LA1	Red	24 V / 2.6 W	630 nm	55 g
LDR-75SW2-LA1	White	24 V / 3.8 W	5,500 K
LDR-75BL2-LA1	Blue		470 nm
LDR-75GR2-LA1	Green		525 nm
LDR-96RD2-LA1	Red	24 V / 3.1 W	630 nm	100 g
LDR-96SW2-LA1	White	24 V / 3.8 W	5,500 K
LDR-96BL2-LA1	Blue		470 nm
LDR-96GR2-LA1	Green		525 nm
LDR-146RD2-LA1	Red	24 V / 4.6 W	630 nm	170 g
LDR-146SW2-LA1	White	24 V / 6.0 W	5,500 K	160 g
LDR-146BL2-LA1	Blue	24 V / 6.1 W	470 nm
LDR-146GR2-LA1	Green	24 V / 6.1 W	525 nm
LDR-176RD2-LA1	Red	24 V / 6.1 W	630 nm	210 g
LDR-176SW2-LA1	White	24 V / 7.6 W	5,500 K	205 g
LDR-176BL2-LA1	Blue		470 nm
LDR-176GR2-LA1	Green		525 nm
LDR-206RD2-LA1	Red	24 V / 7.1 W	630 nm	250 g
LDR-206SW2-LA1	White	24 V / 9.1 W	5,500 K	220 g
LDR-206BL2-LA1	Blue		470 nm
LDR-206GR2-LA1	Green		525 nm
