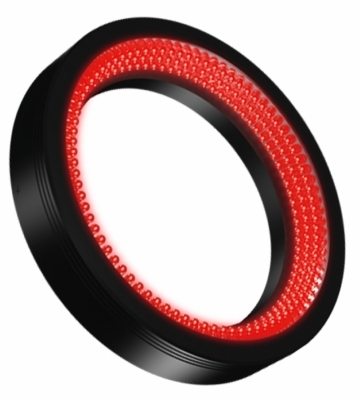

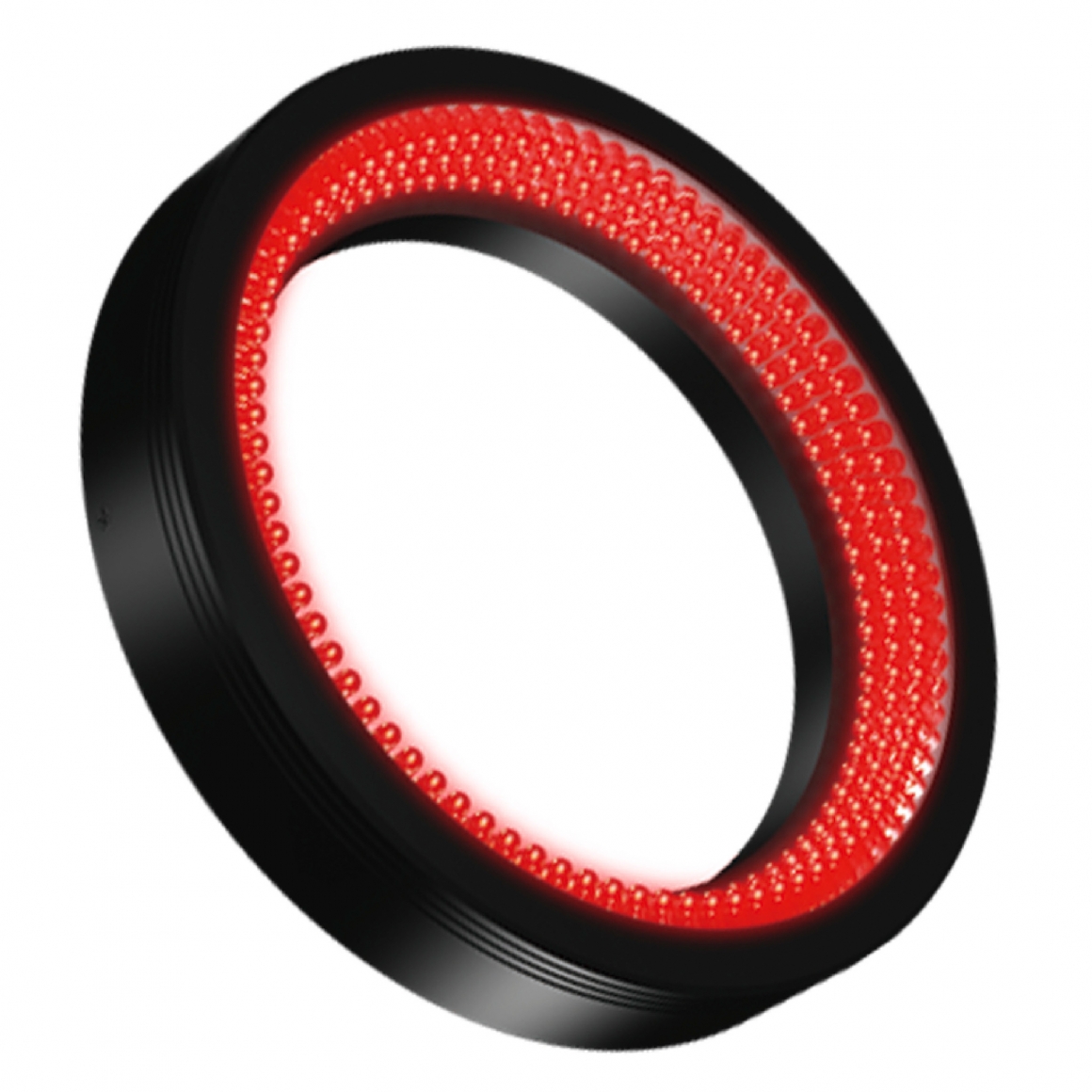

CCS LED光源 LDR2-LA Series 環型
Light UnitAllows for an image that emphasizes the workpiece's characteristic features.
-
型號
Model name
LED 顏色
LED color
輸入電壓/消耗瓦數
Power consumption
波長/溫差
Peak wavelength/ correlated color temperature
重量
Weight
LDR2-48RD2-LA
Red
24 V / 2.1 W
630 nm
50 gLDR2-48SW2-LA
White
24 V / 3.1 W5,500 K
LDR2-48BL2-LA
Blue
470 nm
LDR2-48GR2-LA
Green
525 nm
LDR2-74RD2-LA
Red
24 V / 4.6 W
630 nm
90 gLDR2-74SW2-LA
White
24 V / 5.7 W5,500 K
LDR2-74BL2-LA
Blue
470 nm
LDR2-74GR2-LA
Green
525 nm
LDR2-100RD2-LA
Red
24 V / 9.1 W
630 nm
170 gLDR2-100SW2-LA
White
24 V / 12 W5,500 K
LDR2-100BL2-LA
Blue
470 nm
LDR2-100GR2-LA
Green
525 nm
LDR2-132RD2-LA
Red
24 V / 13 W
630 nm
270 gLDR2-132SW2-LA
White
24 V / 16 W5,500 K
LDR2-132BL2-LA
Blue
470 nm
LDR2-132GR2-LA
Green
525 nm
LDR2-170RD2-LA
Red
24 V / 18 W
630 nm
350 gLDR2-170SW2-LA
White
24 V / 22 W5,500 K
LDR2-170BL2-LA
Blue
470 nm
LDR2-170GR2-LA
Green
525 nm
LDR2-208RD2-LA
Red
24 V / 22 W
630 nm
380 gLDR2-208SW2-LA
White
24 V / 28 W5,500 K
LDR2-208BL2-LA
Blue
470 nm
LDR2-208GR2-LA
Green
525 nm
