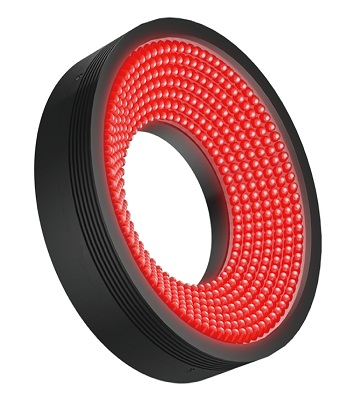

CCS LED光源 LDR2 Series 環型

Light Unit

Any angle can be created with CCS's unique flexible circuit boards.
The required irradiance is ensured by radiating direct light towards the center of the workpiece.

加入追蹤

產品內容

型號 Model name	LED顏色 LED color	輸入電壓/消耗瓦數 Power consumption	波長/色溫 Peak wavelength/ correlated color temperature	重量 Weight
LDR2-32RD2	Red	24 V / 1.6 W	630 nm	30 g
LDR2-32SW2	White	24 V / 1.9 W	5,500 K
LDR2-32BL2	Blue		470 nm
LDR2-32GR2	Green		525 nm
LDR2-42RD2	Red	24 V / 2.1 W	630 nm	50 g
LDR2-42SW2	White	24 V / 2.7 W	5,500 K
LDR2-42BL2	Blue		470 nm
LDR2-42GR2	Green		525 nm
LDR2-50RD2	Red	24 V / 3.1 W	630 nm	50 g
LDR2-50RD2-WD	Red	24 V / 3.1 W	630 nm
LDR2-50SW2	White	24 V / 3.8 W	5,500 K
LDR2-50BL2	Blue		470 nm
LDR2-50GR2	Green		525 nm
LDR2-70RD2	Red	24 V / 6.1 W	630 nm	110 g
LDR2-70RD2-WD	Red	24 V / 6.1 W	630 nm	110 g
LDR2-70SW2	White	24 V / 7.6 W	5,500 K	120 g
LDR2-70BL2	Blue		470 nm
LDR2-70GR2	Green		525 nm
LDR2-90RD2	Red	24 V / 11 W	630 nm	170 g
LDR2-90RD2-WD	Red	24 V / 11 W	630 nm
LDR2-90SW2	White	24 V / 14 W	5,500 K
LDR2-90BL2	Blue		470 nm
LDR2-90GR2	Green		525 nm
LDR2-90-30RD2	Red	24 V / 14 W	630 nm	220 g
LDR2-90-30SW2	White	24 V / 18 W	5,500 K
LDR2-90-30BL2	Blue	24 V / 17 W	470 nm
LDR2-90-30GR2	Green	24 V / 17 W	525 nm
LDR2-120RD2-WD	Red	24 V / 24 W	630 nm	510 g
LDR2-120SW2	White	24 V / 28 W	5,500 K	500 g
LDR2-120BL2	Blue	24 V / 26 W	470 nm
LDR2-120GR2	Green	24 V / 26 W	525 nm
