BECKHOFF EL9100
Potential supply terminal, 24 V DC-

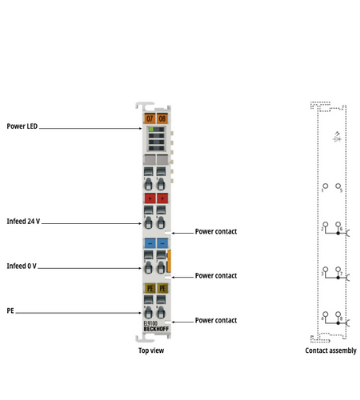

The EL9100 potential feed terminal enables the setup of different potential groups with the standard voltage 24 V DC. The supply voltage is taken up via the front terminal contacts and passed through to the adjacent terminals via the internal power contacts. The E-bus is passed through in the usual way to the adjacent terminal. A Power LED indicates the operating state.
