BECKHOFF EL3164
4-channel analog input terminal 0…10 V, single-ended, 16 bit-

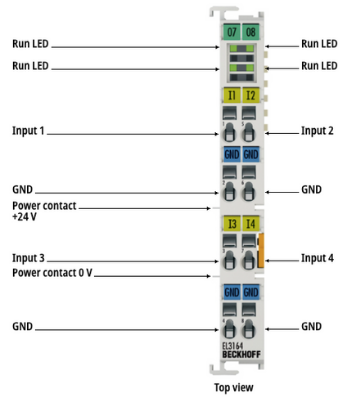

The EL3164 analog input terminal processes signals in the range between 0 and 10 V. The voltage is digitised with a resolution of 16 bits and is transmitted (electrically isolated) to the higher-level automation device. The EL3164 EtherCAT Terminal features 2-wire conductors for the four single-ended inputs with a common internal ground potential. The power contacts are connected through. The signal state of the EtherCAT Terminal is indicated by light emitting diodes.
