BECKHOFF CP78xx (DVI/USB)

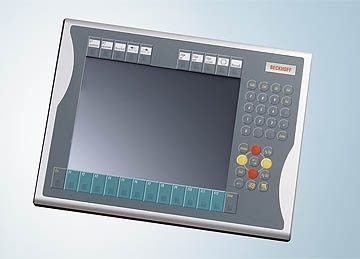

Control Panel with DVI/USB interface
Operating and display elements form an independent unit, separate from the control level. The computer is located in the control cabinet.This concept, which has been thoroughly implemented in the Beckhoff Control Panel, allows the user much freedom.
The CP6xxx and CP7xxx series Control Panels are designed for use as a human-machine interface. Operating and display elements create an independent unit, separated from the control level. The Control Panel has a flat, elegant form, with a large surface presented to the user, but a low depth. The PC is protected in the control cabinet, yet its location is easily accessible. The PC housing can be optimized for fitting PC components.
Functionality and esthetic design in aluminum: the Control Panel housing is machined from an aluminum block. Aluminum is a material with many advantages. It has low weight, high strength, enormous resistance to environmental stresses, can easily be machined and is entirely recyclable. All this can be seen and felt in the Beckhoff Control Panel.
High-quality TFT displays, with even illumination and long service life, ensure the key requirement: the picture must be right.
For an optimum image the PC should be adjusted to the resolution of the display: 5.7- and 6.5-inch displays have a resolution of 640 x 480 pixels, 12-inch displays 800 x 600, 15-inch Control Panels should have 1024 x 768 pixels, 19-inch displays 1280 x 1024 and 24-inch displays use the resolution 1920 x 1200.
The Control Panel can be fitted with a touch pad or with a touch screen.
The CP6xxx and CP7xxx series Control Panels are designed for use as a human-machine interface. Operating and display elements create an independent unit, separated from the control level. The Control Panel has a flat, elegant form, with a large surface presented to the user, but a low depth. The PC is protected in the control cabinet, yet its location is easily accessible. The PC housing can be optimized for fitting PC components.
Functionality and esthetic design in aluminum: the Control Panel housing is machined from an aluminum block. Aluminum is a material with many advantages. It has low weight, high strength, enormous resistance to environmental stresses, can easily be machined and is entirely recyclable. All this can be seen and felt in the Beckhoff Control Panel.
High-quality TFT displays, with even illumination and long service life, ensure the key requirement: the picture must be right.
For an optimum image the PC should be adjusted to the resolution of the display: 5.7- and 6.5-inch displays have a resolution of 640 x 480 pixels, 12-inch displays 800 x 600, 15-inch Control Panels should have 1024 x 768 pixels, 19-inch displays 1280 x 1024 and 24-inch displays use the resolution 1920 x 1200.
The Control Panel can be fitted with a touch pad or with a touch screen.
