CCS LED光源 LDR2/SQR/LDR-PF Series 环型光源

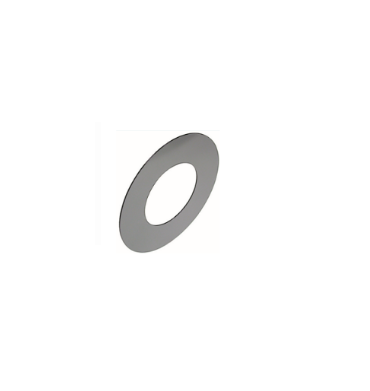

Ring type polarizing plate
CCS Ring type polarizing plates for:
LDR2-32 series
LDR2-42 series
LDR2-50 series
LDR2-70 series
LDR2-90 series
LDR2-120 series
SQR-56 series
LDR2-PF-36 series
LDR2-PF-54 series
LDR2-PF-75 series
LDR2-32 series
LDR2-42 series
LDR2-50 series
LDR2-70 series
LDR2-90 series
LDR2-120 series
SQR-56 series
LDR2-PF-36 series
LDR2-PF-54 series
LDR2-PF-75 series
-
型号
适用光源(各色通用)
尺寸
A
B
厚度
PL-LDR-32
LDR2-32
Ø32
Ø9
0.8
PL-LDR-42
LDR2-42
Ø42
Ø14
PL-LDR-50
LDR2-50
Ø50
Ø26
PL-LDR2-70
LDR2-70
Ø75
Ø35
PL-LDR-90
LDR2-90
Ø90
Ø40
PL-LDR-120-40
LDR2-120
Ø120
Ø40
PL-SQR-56
SQR-56
請參照圖
PL-LDR-PF-36
LDR2-PF-36
Ø36
Ø10
(2)
PL-LDR-PF-54
LDR2-PF-54
Ø54
Ø22
PL-LDR-PF-75
LDR2-PF-75
Ø75
Ø35
※安装光源时需使用AD系列选配器
