CCS LED光源 LDR2/SQR/LDR-PF Series 用扩散板

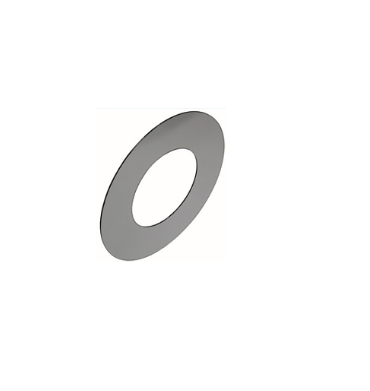

Ring type diffusion plate
CCS Ring type diffusion plates for:
LDR-32 series
LDR-42 series
LDR-50 series
LDR-70 series
LDR-90 series
LDR-120-45 series
SQR-56 series
LDR-PF-36 series
LDR-PF-54 series
LDR-PF-75 series
LDR-32 series
LDR-42 series
LDR-50 series
LDR-70 series
LDR-90 series
LDR-120-45 series
SQR-56 series
LDR-PF-36 series
LDR-PF-54 series
LDR-PF-75 series
-
型号
适用光源(各色通用)
尺寸
A
B
厚度
DF-LDR-32
LDR2-32
Ø32
Ø9
0.8
DF-LDR-42
LDR2-42
Ø42
Ø14
DF-LDR-50
LDR2-50
Ø50
Ø25
DF-LDR2-70
LDR2-70
Ø66
Ø35
DF-LDR-90
LDR2-90
Ø90
Ø40
DF-LDR-120-45
LDR2-120
Ø120
Ø40
DF-SQR-56
SQR-56
請參照圖
DF-LDR-PF-36
LDR2-PF-36
Ø36
Ø10
(2)
DF-LDR-PF-54
LDR2-PF-54
Ø54
Ø22
DF-LDR-PF-75
LDR2-PF-75
Ø75
Ø35
※安装光源时需使用AD系列选配器
