CCS LED光源 BB Series 控制器
Light controller-
Product name
Master unit / Slave unit
Master unit

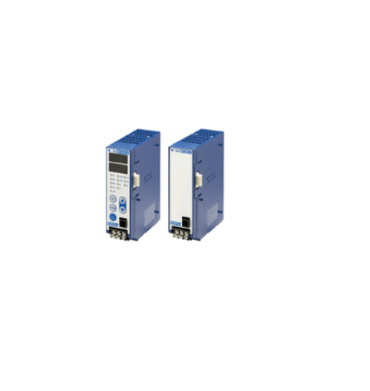

BB-V12P30-M
BB-V24P30-M
BB-V12S30-M
BB-V24S30-M
Slave unit
BB-V12P30-S
BB-V24P30-S
BB-V12S30-S
BB-V24S30-S
Lighting system
Constant lighting
Strobe lighting
Drive method
Constant voltage
Light control method
PWM control
Pulse width
Channels
1 channel
Applicable light (rating)
12V／30W
24V／30W
12V／30W
24V／30W
Input voltage (rated)
DC24V
Input voltage (range)
DC21.6 ～ 26.4V
DC21.6 ～ 25.3V
DC21.6 ～ 26.4V
DC21.6 ～ 26.4V
Power consumption (typ.)
42W
(during connection to 30W load)
42W
(during connection to 30W load)
Mean power consumption:16W
(during connection to 30W load)
Peak power consumption:72W
(during connection to 30W load and strobe)
Mean power consumption:16W
(during connection to 30W load)
Peak power consumption:26W
(during connection to 30W load and strobe)
Output voltage (rated)
DC12V
DC24V
DC18V
DC48V
Output current (rated)
2.5A
1.25A
8.0A
4.3A
Power code length
5m max.
Terminal block control cable length
5m max.
Light cable length
5m max.
Mounting method
On DIN rails, on bottom surface mounting hole/(Fixed using the optional self-support stand)
Operating temperature and humidity
Temperature : 0-40℃, Humidity : 20-85%RH (with no condensation)
Storage temperature and humidity
Temperature : -20-60℃, Humidity : 20-85%RH (with no condensation)
Weight
350g max.
350g max.
350g max.
400g max.
Product name
Interface unit (parallel communications)
Model name
BB-CPC-S
BB-CPP-S
Input voltage (rating)
DC24V（Supplied via coupled connector）
Input voltage (range)
DC21.6-26.4V（Supplied via coupled connector）
Power consumption (typ.)
10W（Supplied via coupled connector）
External control input/output
Parallel bit system
External control input
/output specifications
No insulation, C-MOS level input/output LOW : 1.5V max., High : 3.5V min.
2.2k Ohms, 5V pull-up
Input voltage range : 0V-5.5V DC
Photocoupler insulation : 24V input/output OFF : 10V max., ON : 14V min.
OFF current : 4mA max., ON current : 5.8mA min.
Input voltage range : 0V-26.4V DC
External control cable length
Less than or equal to 5m
Use environment
Temperature : 0-40℃, Humidity : 20-85%RH (free from condensation)
Storage environment
Temperature : -20-60℃, Humidity : 20-85%RH (free from condensation)
Weight
300g max.
