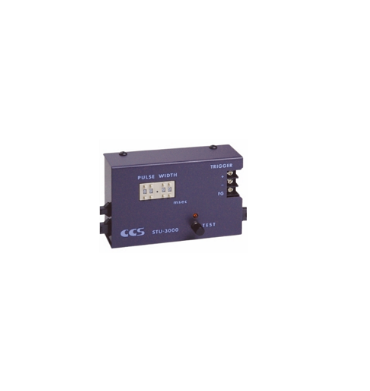

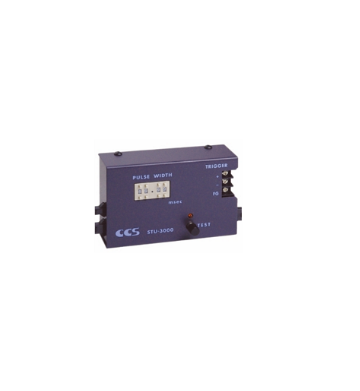

CCS LED光源 STU-3000 控制器
Light controller
CCS unit can be connected to any one of the PD2-1012/PD2-3012/PD2-5012/PD2-3012-2 and PD2-1024/PD2-3024/PD2-5024/PD2-3024-2 Control Units. The optical pulse width can be controlled between 0.01 and 99.99 ms at increments of 0.01 ms.
-
Model name
STU-3000
Input connector
SMP-04V-BC (12 or 24 VDC)
M3 terminal block 3P (trigger inputs, FG connection terminals)
Output connector
SMP-02V-BC (12 VDC)
SMP-03V-BC (24 VDC)
M3 jack (ON/OFF signal)
Trigger
Photocoupler input, 5 to 24 VDC, current 5 mA max.
Pulse width of 20 μs or more and rising edge of 10 μs max.
ON/OFF signal
Connected with input jack on the PD2 Control Unit for light ON/OFF signal
Center: Signal line, Sleeve: GND
Lighting time
0.01 to 99.99 ms
Lighting delay
10 μs max.
Accessories
ON/OFF signal and Control Unit connection cables
Weight
400 g max.
Connectable Control Units
PD2-1012/1024/3012/3024/5012/5024/3012-2/3024-2
