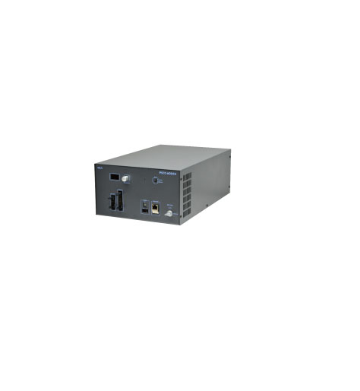

CCS LED光源 PSCC Series 控制器 (定电流)

Lighting method

Continuous lighting

Drive method

Constant-current system

Intensity control method

Variable-current control

No. of channels

1 channel

Number of circuits

PSCC-30048(A): 7 circuits max. (Light intensity can be adjusted for each Light Unit circuit.)

Number of circuits

PSCC-60048(A): 15 circuits max. (Light intensity can be adjusted for each Light Unit circuit.)

Applicable Light Unit (rated)

PSCC-30048(A): 43 VDC or less and 293 W max. (36 W max. of which is for the fan)

PSCC-60048(A): 43 VDC or less and 602 W max. (50 W max. of which is for the fan)

Light intensity control

Manual and external intensity

Front manual/external switch (MODE)

External

Parallel communication

8-bit intensity value setting (B0 to B7) and write signal (WR)

External

EIA-485 communication

Command input via EIA-485 communication

External

Ethernet communication

Command input via TCP/IP or UDP/IP communication

External

External control mode can be selected by pushing the setting switch while turning on the power.

ON/OFF control

Parallel bit input

OFF signal (ON/OFF)

ON/OFF control

EIA-485 communication

OFF signal (ON/OFF), Command input via EIA-485 communication

ON/OFF control

Ethernet communication

OFF signal (ON/OFF), Command input via TCP/IP or UDP/IP communication

ON/OFF control

ON/OFF logic can be selected by pushing the setting switch while turning ON the power to the Control Unit.

25H or 99H: Normal logic (default) 25L or 99L: Reversed logic

EIA-485 communication

ID

Set via the front ID switch (00 to 03). Maximum of 4 connected units.

settings

Terminating resistance

Set via the front ID switch (terminating resistance is ON only when the ID is 00).

Error detection display

Burnt-out LED detection (open)

"E01" is displayed on the front-panel digital display.

Error detection display

Burnt-out LED detection (short circuit)

"E02" is displayed on the front-panel digital display.

Error detection display

Light Unit fan speed decrease/stop detection

"F01 to F07" is displayed on the front-panel digital display (PSCC-30048(A)).

"F01 to F15" is displayed on the front-panel digital display (PSCC-60048(A)).

Error detection display

Control Unit fan speed decrease/stop detection

"E03" is displayed on the front-panel digital display.

Error detection display

Communication error detection

"E04" is displayed on the front-panel digital display.

Error detection display

Connector disconnection detection

"E04" is displayed on the front-panel digital display.

Error detection display

Internal Control Unit error detection

"E05" is displayed on the front-panel digital display (PSCC-60048(A) only).

Error detection output

Parallel communication

Output at pins 19 and 20: Photocoupler insulation, open connector output, short circuit at alert (load current of 10 mA or less)

Error detection output

EIA-485 communication

Checked by using a status command through EIA-485 communication

Error detection output

Ethernet communication

Checked by using a status command through TCP/IP or UDP/IP

Input power supply

100 to 240 VAC (+10% - 15%), 50/60 Hz

Power consumption (typ.)

PSCC-30048(A): 360 VA, PSCC-60048(A): 750 VA

Operating temp. and humidity

Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation)

Storage temp. and humidity

Temperature: -20 to 60°C, Humidity: 20% to 85%RH (with no condensation)

Cooling method

Forced air cooling

CE marking

Safety standard: EN61010-1 compliant, EMC standard: EN61326-1 Class A compliant

Environmental regulations

RoHS compliant

Material, coating, surface processing

Steel plate, Thickness of cover: 1.0,

Thickness of chassis: 1.6 (PSCC-30048(A))/2.0 (PSCC-60048(A)), N3 leather tone finish

Weight

PSCC-30048(A): 3,100 g max., PSCC-60048(A): 7,000 g max.

Accessories

PSCC-30048(A): 3-prong AC cord with ground terminal (2 m) x 1, Instruction Guide x 1

PSCC-60048(A): 3-prong AC cord with ground terminal (2 m) x 1, Instruction Guide x 1, keys x 2
