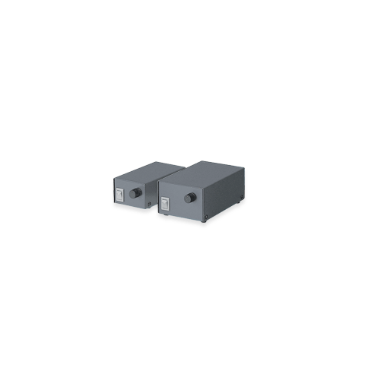

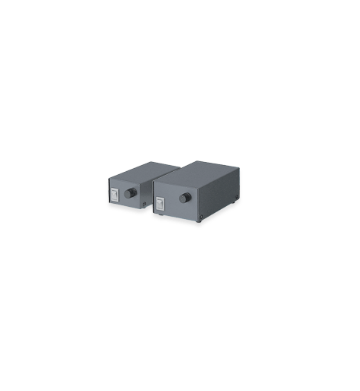

CCS LED光源 PSB Series 控制器
Light controllerNote: Select a model after making sure that the total power consumption of the Light Units is within the output power capacity of the Control Unit.
-
Model name
PSB-512V
PSB-512VLPSB-524V
PSB-524VLPSB-1012VB
PSB-1012VBLPSB-1024VB
PSB-1024VBLPSB-3012VB
PSB-3012VBLPSB-3024VB
PSB-3024VBLPSB-1012V-WW
PSB-1024V-WW
Lighting method
Continuous lighting
Drive method
Constant-voltage system
Intensity control method
Variable voltage control
No. of channels
1 channel
Applicable Light Unit (rated)
12 V 5 W
24 V 5 W
12 V 10 W
24 V 10 W
12 V 30 W
24 V 30 W
12 V 10 W
24 V 10 W
Intensity
Intensity knob on the unit front panel
Overcurrent protection
Operates at 125% of the rated current or higher. Resets automatically.
Operates at 105% of the rated current or higher. Resets automatically.
Input voltage (rated)
100 to 120 VAC
100 to 240 VAC
Input voltage (range)
85 to 132 VAC
85 to 264 VAC
Power consumption (typ.)
15 VA
27 VA
78 VA
27 VA
Frequency
50/60 Hz
Inrush current (typ.)
15 A (For 100 VAC)
From a cold start
15 A (For 100 VAC)
20 A (For 200 VAC)
From a cold start
Ground leakage current
3.5 mA max.
3.5 mA max.
(264 VAC, 60 Hz, with no load)
Output voltage (rated)
8.3 (±1) VDC to 12.05 (±0.15) VDC
15 (±1) VDC to
24.05 (±0.25) VDC
8.3 (±1) VDC to 12.05 (±0.15) VDC
12 (±1) VDC to
24.05 (±0.25) VDC
8.3 (±1) VDC to 12.05 (±0.15) VDC
12 (±1) VDC to
24.05 (±0.25) VDC
8.3 (±1) VDC to 12.05 (±0.15) VDC
12 (±1) VDC to
24.05 (±0.25) VDC
Output current (rated)
0.41 A
0.21 A
0.83 A
0.41 A
2.5 A
1.25 A
0.83 A
0.41 A
Dielectric strength (Input - Output)
1,000 VAC 1-min. cutoff current 10 mA
500 VDC 20 MΩ or more
1,500 VAC 1-min. cutoff current 10 mA
500 VDC 20 MΩ or more
Dielectric strength (Input-FG)
1,000 VAC 1-min. cutoff current 10 mA
500 VDC 20 MΩ or more
1,500 VAC 1-min. cutoff current 10 mA
500 VDC 20 MΩ or more
Operating temperature and humidity
Temperature: 0 to 40°C, Humidity: 20% to 85%RH (with no condensation)
Storage temperature and humidity
Temperature: -20 to 60°C, Humidity: 20% to 85%RH (with no condensation)
Cooling method
Natural air cooling
Elevation
2,000 m max.
Protective ground class
Class 0
Class I
Degree of contamination
Degree of contamination 2
Overvoltage category
Category II
CE marking
Safety standard: EN61010-1 compliant
EMC standard: EN61326 compliant
Environmental regulations
RoHS compliant
Material, coating, surface processing
Steel plate, Thickness: 1.0, N3, Matte finish
Weight
Approx. 420 g
Approx. 470 g
Approx. 700 g
Approx. 470 g
Accessories
Instruction Guide x 1
Instruction Guide x 1
AC cord (with ground wire) x 1
