category

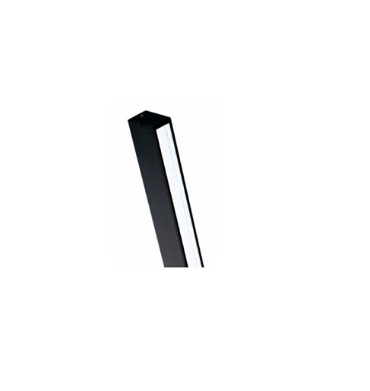

CCS LED光源 LN Series 线型
Light Unit
The width of the converged light can be adjusted by changing the end unit. Units with 60-mm or 20-mm light-emitting surface are available. The CCS LN-HK Series, which provides high power illumination with white power LEDs and unique heat-dissipating structure, is also available.
-
型号
Model
LED颜色
LED color
输入电压/消耗瓦数
Power consumption (max.)
波长
Peak wavelength/Correlated color temperature (typ.)
重量
WeightLN-60RD2
Red
24 V / 2.1 W
630 nm
130 g
LN-60SW2
White
24 V / 1.0 W
5,500 K
LN-60BL2
Blue
470 nm
LN-60GR2
Green
525 nm
LN-200RD2
Red
24 V / 3.1 W
630 nm
500 g
LN-200SW2
White
5,500 K
LN-200BL2
Blue
470 nm
LN-200GR2
Green
525 nm
