CCS LED光源 LV Series
Light Unit

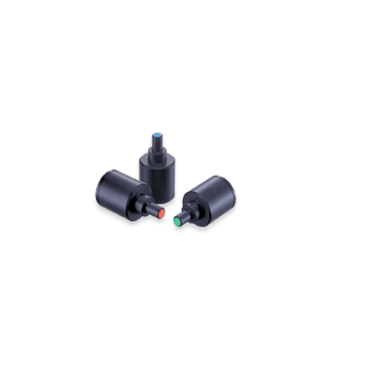

The CCS LV Spot Lights feature low power consumption. The product lineup includes the LED colors of red (RD), white (SW), blue (BL), and green (GR).
Spot Light with tip radius of Φ8 mm and emitting surface of Φ6 mm.
Can be used embedded into the coaxial illuminating section of a telecentric lens or macro lens.
Spot Light with tip radius of Φ8 mm and emitting surface of Φ6 mm.
Can be used embedded into the coaxial illuminating section of a telecentric lens or macro lens.
-
型号
Model
LED颜色
LED color
输入电压/消耗瓦数
Power consumption (max.)
波长
Peak wavelength/Correlated color temperature (typ.)
重量
WeightLV-27RD2
Red
24 V / 0.8 W
630 nm
40 g
LV-27SW2
White
24 V / 0.4 W
5,500 K
LV-27BL2
Blue
24 V / 0.4 W
470 nm
LV-27GR2
Green
24 V / 0.6 W
525 nm
