CCS LED光源 UV2 Series 泛指各类UV
Light Unit

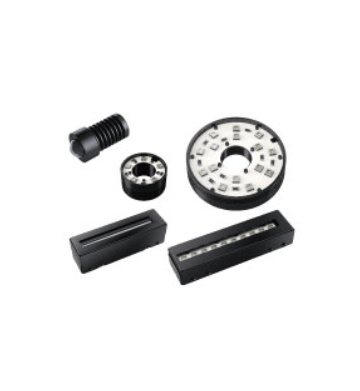

These CCS UV Light Units provide superior cost performance.
25 times higher output than the previous models(Comparison with Bar Lights).
For replacement of black lights.
Narrow: The irradiation is concentrated in a narrow range using lenses.
Wide: The irradiation covers a wide range. Lensless type.
25 times higher output than the previous models(Comparison with Bar Lights).
For replacement of black lights.
Narrow: The irradiation is concentrated in a narrow range using lenses.
Wide: The irradiation covers a wide range. Lensless type.
-
型号
Model
LED颜色
LED color
输入电压/消耗瓦数
Power consumption (max.)
波长
Peak wavelength/Correlated color temperature (typ.)
重量
WeightLDR2-60UV2-365-N
Narrow
7.6 W
365nm
170 g
LDR2-60UV2-365-W
Wide
LDR2-100UV2-365-N
Narrow
23 W
250 g
LDR2-100UV2-365-W
Wide
LDL-71X12UV2-365-N
Narrow
7.6 W
300 g
LDL-138X12UV2-365-N
Narrow
16 W
500 g
LDL-205X12UV2-365-N
Narrow
23 W
700 g
LDL-339X12UV2-365-N
Narrow
38 W
1090 g
LN-61UV2-365
7.6 W
450 g
LN-128UV2-365
16 W
750 g
LN-195UV2-365
23 W
1050 g
HLV2-24UV2-365
3.2 W / 0.7 A
50 g
