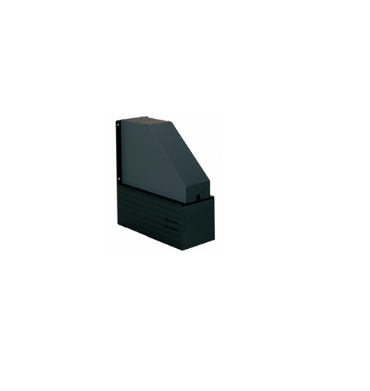

CCS LED光源 MSU Series 平行同軸
Light Unit
These CCS Coaxial Lights provide collimated lighting which is created through a special lens.
The product lineup includes five models with different fields of view and the LED colors of red (RD2), white (SW), blue (BL), and green (GR).
The product lineup includes five models with different fields of view and the LED colors of red (RD2), white (SW), blue (BL), and green (GR).
-
型号
Model顏色
Color波长
Peak wavelength/ Relative color temperature (typ.)输入电压/消耗瓦数
Power Consumption (max.)重量
Weight(max.)
MSU-10RD2
Red
630 nm
24 V / 0.8 W
275 g
MSU-10SW2
White
5,500 K
24 V / 0.4 W
MSU-10BL2
Blue
470 nm
24 V / 0.4 W
MSU-30RD2
Red
630 nm
24 V / 0.8 W
2000 g
MSU-30BL2
Blue
470 nm
24 V / 0.4 W
MSU-30X20RD2
Red
630 nm
24 V / 0.8 W
540 g
MSU-30X20SW2
White
5,500 K
24 V / 0.5 W
MSU-30X2BL2
Blue
470 nm
24 V / 0.5 W
MSU-30X20GR2
Green
525nm
24 V / 0.5 W
MSU-100RD2
Red
630 nm
24 V / 0.8 W
9920 g
MSU-100SW2
White
5,500 K
24 V / 0.4 W
MSU-130RD2
Red
630 nm
24 V / 0.8 W
12,700 g
MSU-130SW2-CL
White
5,500 K
24 V / 0.4 W
24 V / 4.6 W
13,000 g
