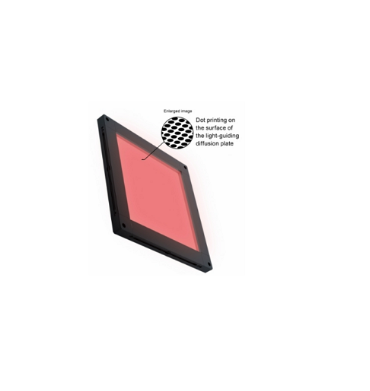

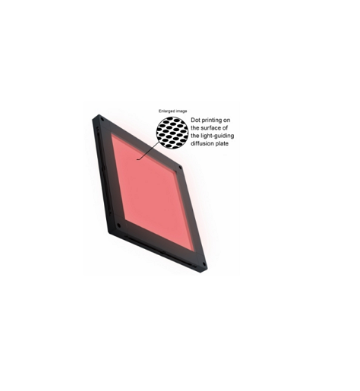

CCS LED光源 LFX3 Series 平面

Light Unit

The CCS LFX3-series Light Units are high-power Flat Dome Lights perfect for fast-moving production lines. The brightness of the white lights has been tripled.
The Light Unit is available in 7 sizes and 4 LED colors: red, white, blue, and infrared.

加入追踪

产品内容

型号 Model	LED颜色 LED color	输入电压/消耗瓦数 Power consumption (max.)	波长 Peak wavelength/Correlated color temperature (typ.)	重量 Weight (max.)
LFX3-25RD	Red	1.6 W	632 nm	80 g
LFX3-25SW	White	1.5 W	6,800 K
LFX3-25BL	Blue	0.8 W	469 nm
LFX3-25IR860	Infrared	1.4 W	857 nm
LFX3-50RD	Red	13 W	632 nm	230 g
LFX3-50SW	White	12 W	6,800 K
LFX3-50BL	Blue	6.1 W	469 nm
LFX3-50IR860	Infrared	6.6 W	857 nm
LFX3-75RD	Red	13 W	632 nm	320 g
LFX3-75SW	White	18 W	6,800 K
LFX3-75BL	Blue	9.1 W	469 nm
LFX3-75IR860	Infrared	14 W	857 nm
LFX3-100RD	Red	19 W	632 nm	400 g
LFX3-100SW	White	23 W	6,800 K
LFX3-100BL	Blue	13 W	469 nm
LFX3-100IR860	Infrared	14 W	857 nm
LFX3-150RD	Red	25 W	632 nm	620 g
LFX3-150SW	White	35 W	6,800 K
LFX3-150BL	Blue	19 W	469 nm
LFX3-150IR860	Infrared	20 W	857 nm
LFX3-200X100RD	Red	28 W	632 nm	620 g
LFX3-200X100SW	White	35 W	6,800 K
LFX3-200X100BL	Blue	19 W	469 nm
LFX3-200X100IR860	Infrared	20 W	857 nm
LFX3-200RD	Red	37 W	632 nm	910 g
LFX3-200SW	White	46 W	6,800 K
LFX3-200BL	Blue	25 W	469 nm
LFX3-200IR860	Infrared	27 W	857 nm
