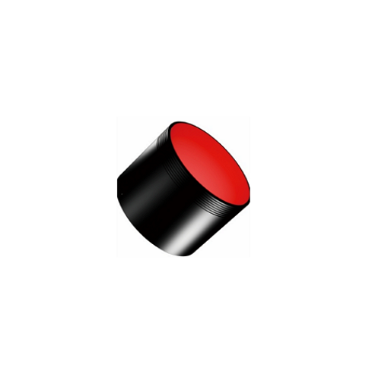

CCS LED光源 LDM2 Series 圆筒型
Light Unit
These CCS Dome Lights provide unique heat-dissipating structure.
Diffused light is irradiated over the entire workpiece from a wide light-emitting surface.
Diffused light is irradiated over the entire workpiece from a wide light-emitting surface.
-
型号
Model
LED颜色
LED color
输入电压/消耗瓦数
Power consumption (max.)
波长
Peak wavelength/Correlated color temperature (typ.)
重量
Weight (max.)
LDM2-50RD2
Red
24 V / 3.6 W
630 nm
100 g
LDM2-50SW2
White
24 V / 5.0 W
5,500 K
LDM2-50BL2
Blue
470 nm
LDM2-50GR2
Green
525 nm
LDM2-90RD2
Red
24 V / 14 W
630 nm
500 g
LDM2-90SW2
White
24 V / 18 W
5,500 K
LDM2-90BL2
Blue
470 nm
LDM2-90GR2
Green
525 nm
