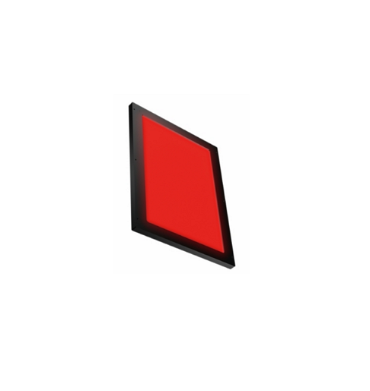

CCS LED光源 LFL Series 平面

Light Unit

Light from the CCS LEDs that are arranged around the periphery of the square shaped light-guiding diffusion plate passes through the plate and produce diffused illumination.
Thin-structure design of 6 mm min. (for the LFL-612, LFL-1012, and LFL-50) enables space-saving installation.

加入追踪

产品内容

型号 Model	LED颜色 LED color	输入电压/消耗瓦数 Power consumption (max.)	波长 Peak wavelength/Correlated color temperature (typ.)	重量 Weight
LFL-612RD2	Red	24 V / 0.6 W	630 nm	25 g
LFL-612SW2	White	24 V / 0.4 W	5,500 K	20 g
LFL-612BL2	Blue		470 nm	25 g
LFL-612GR2	Green		525 nm	25 g
LFL-612RD2-P	Red	24 V / 0.6 W	630 nm	25 g
LFL-612SW2-P	White	24 V / 0.4 W	5,500 K
LFL-612BL2-P	Blue		470 nm
LFL-612GR2-P	Green		525 nm
LFL-1012RD2	Red	24 V / 0.6 W	630 nm	35 g
LFL-1012SW2	White	24 V / 0.8 W	5,500 K	30 g
LFL-1012BL2	Blue		470 nm	35 g
LFL-1012GR2	Green		525 nm	35 g
LFL-1012RD2-P	Red	24 V / 0.6 W	630 nm	35 g
LFL-1012SW2-P	White	24 V / 0.8 W	5,500 K	30 g
LFL-1012BL2-P	Blue		470 nm	35 g
LFL-1012GR2-P	Green		525 nm	35 g
LFL-3212RD2	Red	24 V / 1.6 W	630 nm	80 g
LFL-3212SW2	White	24 V / 2.3 W	5,500 K
LFL-3212BL2	Blue		470 nm
LFL-3212GR2	Green		525 nm
LFL-4012RD2	Red	24 V / 2.1 W	630 nm	105 g
LFL-4012SW2	White	24 V / 2.7 W	5,500 K	110 g
LFL-4012BL2	Blue		470 nm	105 g
LFL-4012GR2	Green		525 nm	105 g
LFL-50RD2	Red	24 V / 2.1 W	630 nm	50 g
LFL-50SW2	White	24 V / 3.1 W	5,500 K
LFL-50BL2	Blue	24 V / 3.0 W	470 nm
LFL-50GR2	Green	24 V / 3.0 W	525 nm
LFL-100RD2	Red	24 V / 5.1 W	630 nm	215 g
LFL-100SW2	White	24 V / 5.3 W	5,500 K	220 g
LFL-100BL2	Blue		470 nm	215 g
LFL-100GR2	Green		525 nm	215 g
LFL-180RD2	Red	24 V / 7.1 W	630 nm	375 g
LFL-180SW2	White	24 V / 9.1 W	5,500 K	370 g
LFL-180BL2	Blue		470 nm	375 g
LFL-180GR2	Green		525 nm	375 g
LFL-200RD2	Red	24 V / 12 W	630 nm	500 g
LFL-200SW2	White		5,500 K	500 g
LFL-200BL2	Blue		470 nm	495 g
LFL-200GR2	Green		525 nm	495 g
LFL-360RD2	Red	24 V / 30 W	630 nm	2,360 g
LFL-360SW2	White	24 V / 37 W	5,500 K	2,320 g
LFL-360BL2	Blue	24 V / 38 W	470 nm	2,320 g
