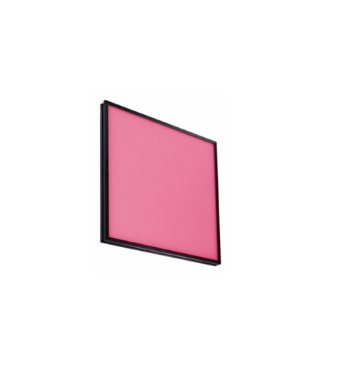

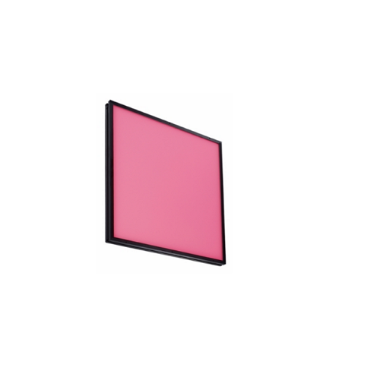

CCS LED光源 TH Series 平面

Light Unit

These CCS Light Units were evolved from the LDL-TP Series to achieve high power output that was unprecedented for the Flat Lights.
Abundant size variations and space-saving installation will also help your system design.
The LED colors are red, white, and blue.

加入追踪

产品内容

型号 Model name	LED 颜色 LED color	输入电压 Power consumption	波长/温差 Peak wavelength/ correlated color temperature	重量 Weight
TH-27X27RD	Red	24 V / 1.9 W	635 nm	30 g
TH-27X27SW	White	24 V / 2.2 W	6,600 K
TH-27X27BL	Blue	24 V / 2.2 W	470 nm
TH-43X35RD	Red	24 V / 3.8 W	635 nm	40 g
TH-43X35SW	White	24 V / 3.0 W	6,600 K
TH-43X35BL	Blue	24 V / 3.0 W	470 nm
TH-51X51RD	Red	24 V / 5.1 W	635 nm	60 g
TH-51X51SW	White	24 V / 5.2 W	6,600 K
TH-51X51BL	Blue	24 V / 5.2 W	470 nm
TH-63X60RD	Red	24 V / 8.1 W	635 nm	100 g
TH-63X60SW	White	24 V / 7.9 W	6,600 K
TH-63X60BL	Blue	24 V / 7.9 W	470 nm
TH-83X75RD	Red	24 V / 11 W	635 nm	140 g
TH-83X75SW	White	24 V / 12 W	6,600 K
TH-83X75BL	Blue	24 V / 12 W	470 nm
TH-100X100RD	Red	24 V / 19 W	635 nm	200 g
TH-100X100SW	White	24 V / 18 W	6,600 K
TH-100X100BL	Blue	24 V / 18 W	470 nm
TH-140X105RD	Red	24 V / 25 W	635 nm	260 g
TH-140X105SW	White	24 V / 24 W	6,600 K
TH-140X105BL	Blue	24 V / 24 W	470 nm
TH-160X120RD	Red	24 V / 28 W	635 nm	310 g
TH-160X120SW	White	24 V / 30 W	6,600 K
TH-160X120BL	Blue	24 V / 30 W	470 nm
TH-200X150RD	Red	24 V / 38 W	635 nm	440 g
TH-200X150SW	White	24 V / 37 W	6,600 K
TH-200X150BL	Blue	24 V / 37 W	470 nm
TH-224X170RD	Red	24 V / 41 W	635 nm	540 g
TH-224X170SW	White		6,600 K
TH-224X170BL	Blue		470 nm
TH-211X200RD	Red	24 V / 45 W	635 nm	580 g
TH-211X200SW	White		6,600 K
TH-211X200BL	Blue		470 nm
