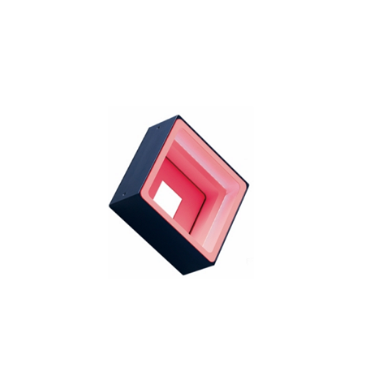

CCS LED光源 FPQ2 Series 方型

Light Unit

These CCS Low-angle square Lights are ideal for imaging square shaped workpiece.
Uneven illumination which may occur with the use of the Low-angle Ring Light can be avoided.
Preserving the style of the FPQ Series, these Light Units achieved high output.

加入追踪

产品内容

型号 Model	LED 颜色 LED color	波长/温差 Peak wavelength/ correlated color temperature (typ.)	尺寸 Size (W×D×H)	输入电压 Power consumption	重量 Weight
FPQ2-20RD	Red	630 nm	20×20×23	24 V / 1.5 W	25 g
FPQ2-20SW	White	6000 K		24 V / 2.6 W
FPQ2-20BL	Blue	465 nm		24 V / 1.8 W
FPQ2-32RD	Red	630 nm	32×32×30	24 V / 6.1 W	50 g
FPQ2-32SW	White	6000 K		24 V / 5.1 W
FPQ2-32BL	Blue	465 nm		24 V / 3.1 W
FPQ2-48RD	Red	630 nm	48×48×30	24 V / 5.8 W	85 g
FPQ2-48SW	White	6000 K		24 V / 11 W
FPQ2-48BL	Blue	465 nm		24 V / 7.1 W
FPQ2-75RD	Red	630 nm	75×75×30	24 V / 17 W	145 g
FPQ2-75SW	White	6000 K		24 V / 16 W
FPQ2-75BL	Blue	465 nm		24 V / 9.1 W
FPQ2-96RD	Red	630 nm	96×96×30	24 V / 15 W	160 g
FPQ2-96SW	White	6000 K		24 V / 21 W
FPQ2-96BL	Blue	465 nm		24 V / 13 W
FPQ2-120RD	Red	630 nm	120×120×30	24 V / 18 W	200 g
FPQ2-120SW	White	6000 K		24 V / 21 W
FPQ2-120BL	Blue	465 nm		24 V / 11 W
