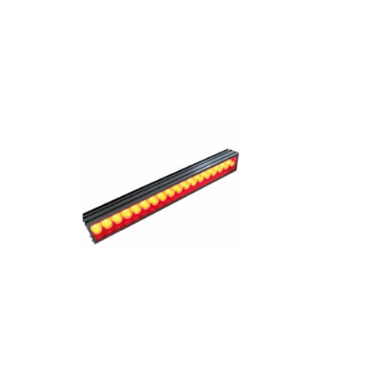

CCS LED光源 HLDL2 Series 条型
Light UnitBy using lenses, we provide the narrow type, which allows for convergent illumination, and the wide type, which uses diffused illumination over a wide area.
Long-distance irradiation is the specialty of these Bar Lights.
-
型号
Model NameLED 颜色
LED color输入电压/消耗瓦数
Power Consumption发光面
Emitting Surface (L × W)连接线
Cable ConnectorHLDL2-150x45RD-DF-N
Red
14 W
150x45 mm
SM
connector
HLDL2-300x45RD-DF-N
Red
28 W
300x45 mm
HLDL2-450x45RD-DF-N
Red
42 W
450x45 mm
HLDL2-600x45RD-DF-N
Red
56 W
600x45 mm
EL
connector
HLDL2-750x45RD-DF-N
Red
70 W
750x45 mm
HLDL2-900x45RD-DF-N
Red
84 W
900x45 mm
HLDL2-1050x45RD-DF-N
Red
98 W
1050x45 mm
HLDL2-1200x45RD-DF-N
Red
111 W
1200x45 mm
HLDL2-150x45RD-DF-W
Red
14 W
150x45 mm
SM
connector
HLDL2-300x45RD-DF-W
Red
28 W
300x45 mm
HLDL2-450x45RD-DF-W
Red
42 W
450x45 mm
HLDL2-600x45RD-DF-W
Red
56 W
600x45 mm
EL
connector
HLDL2-750x45RD-DF-W
Red
70 W
750x45 mm
HLDL2-900x45RD-DF-W
Red
84 W
900x45 mm
HLDL2-1050x45RD-DF-W
Red
98 W
1050x45 mm
HLDL2-1200x45RD-DF-W
Red
111 W
1200x45 mm
Model Name
Red
Power Consumption
(max.)
Emitting Surface (L × W)
Cable Connector
Red
HLDL2-150x45SW-DF-N
Red
16 W
150x45 mm
SM
connector
HLDL2-300x45SW-DF-N
Red
31 W
300x45 mm
HLDL2-450x45SW-DF-N
Red
46 W
450x45 mm
HLDL2-600x45SW-DF-N
Red
61 W
600x45 mm
EL
connector
HLDL2-750x45SW-DF-N
Red
76 W
750x45 mm
HLDL2-900x45SW-DF-N
Red
91 W
900x45 mm
HLDL2-1050x45SW-DF-N
Red
106 W
1050x45 mm
HLDL2-1200x45SW-DF-N
Red
121 W
1200x45 mm
HLDL2-150x45SW-DF-W
Red
16 W
150x45 mm
SM
connector
HLDL2-300x45SW-DF-W
Red
31 W
300x45 mm
HLDL2-450x45SW-DF-W
Red
46 W
450x45 mm
HLDL2-600x45SW-DF-W
Red
61 W
600x45 mm
EL
connector
HLDL2-750x45SW-DF-W
Red
76 W
750x45 mm
HLDL2-900x45SW-DF-W
Red
91 W
900x45 mm
HLDL2-1050x45SW-DF-W
Red
106 W
1050x45 mm
HLDL2-1200x45SW-DF-W
Red
121 W
1200x45 mm
HLDL2-150x45IR-DF-N
Red
12 W
150x45 mm
SM
connector
HLDL2-300x45IR-DF-N
Red
24 W
300x45 mm
HLDL2-450x45IR-DF-N
Red
36 W
450x45 mm
HLDL2-600x45IR-DF-N
Red
48 W
600x45 mm
EL
connector
HLDL2-750x45IR-DF-N
Red
60 W
750x45 mm
HLDL2-900x45IR-DF-N
Red
72 W
900x45 mm
HLDL2-1050x45IR-DF-N
Red
84 W
1050x45 mm
HLDL2-1200x45IR-DF-N
Red
96 W
1200x45 mm
HLDL2-150x45IR-DF-W
Red
12 W
150x45 mm
SM
connector
HLDL2-300x45IR-DF-W
Red
24 W
300x45 mm
HLDL2-450x45IR-DF-W
Red
36 W
450x45 mm
HLDL2-600x45IR-DF-W
Red
48 W
600x45 mm
EL
connector
HLDL2-750x45IR-DF-W
Red
60 W
750x45 mm
HLDL2-900x45IR-DF-W
Red
72 W
900x45 mm
HLDL2-1050x45IR-DF-W
Red
84 W
1050x45 mm
HLDL2-1200x45IR-DF-W
Red
96 W
1200x45 mm
