Basler Pilot Series 面阵相机 (GigE)

GigE

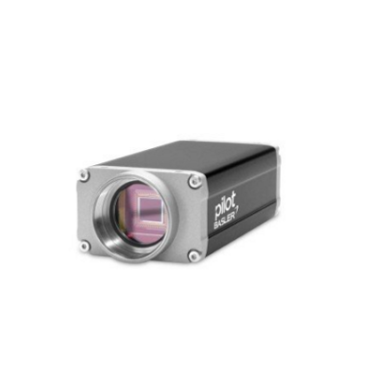

The Basler pilot camera family is based on four selected Kodak CCD sensors and one Sony CCD sensor for exceptional image quality. Equipped with a GigE Vision compliant interface, these cameras take maximum advantage of Kodak and Sony sensor technology and can often substitute for more cost-intensive Camera Link cameras and frame grabbers. Because Basler pilot cameras use the same sensors currently used in existing Camera Link cameras, no optics changes are required.

加入追踪

产品内容

相机型号	解析度	取像速度	彩色/黑白	像素尺寸	感光芯片尺寸	感光芯片类型	快门
piA640-210gc	646 px x 486 px	210 fps	Color	7.4 µm x 7.4 µm	4.8 mm x 3.6 mm	CCD	Global Shutter
piA640-210gm	648 px x 488 px	210 fps	Mono	7.4 µm x 7.4 µm	4.8 mm x 3.6 mm	CCD	Global Shutter
piA1000-48gc	1000 px x 1000 px	48 fps	Color	7.4 µm x 7.4 µm	7.4 mm x 7.4 mm	CCD	Global Shutter
piA1000-60gc	1000 px x 1000 px	60 fps	Color	7.4 µm x 7.4 µm	7.4 mm x 7.4 mm	CCD	Global Shutter
piA1000-48gm	1004 px x 1004 px	48 fps	Mono	7.4 µm x 7.4 µm	7.4 mm x 7.4 mm	CCD	Global Shutter
piA1000-60gm	1004 px x 1004 px	60 fps	Mono	7.4 µm x 7.4 µm	7.4 mm x 7.4 mm	CCD	Global Shutter
piA1600-35gc	1604 px x 1204 px	35 fps	Color	7.4 µm x 7.4 µm	11.9 mm x 8.9 mm	CCD	Global Shutter
piA1600-35gm	1608 px x 1208 px	35 fps	Mono	7.4 µm x 7.4 µm	11.9 mm x 8.9 mm	CCD	Global Shutter
piA1900-32gm	1928 px x 1084 px	32 fps	Mono	7.4 µm x 7.4 µm	14.2 mm x 8 mm	CCD	Global Shutter
piA2400-17gc	2454 px x 2056 px	17 fps	Color	3.45 µm x 3.45 µm	8.5 mm x 7.1 mm	CCD	Global Shutter
piA2400-17gm	2454 px x 2056 px	17 fps	Mono	3.45 µm x 3.45 µm	8.5 mm x 7.1 mm	CCD	Global Shutter
